Main Parameters

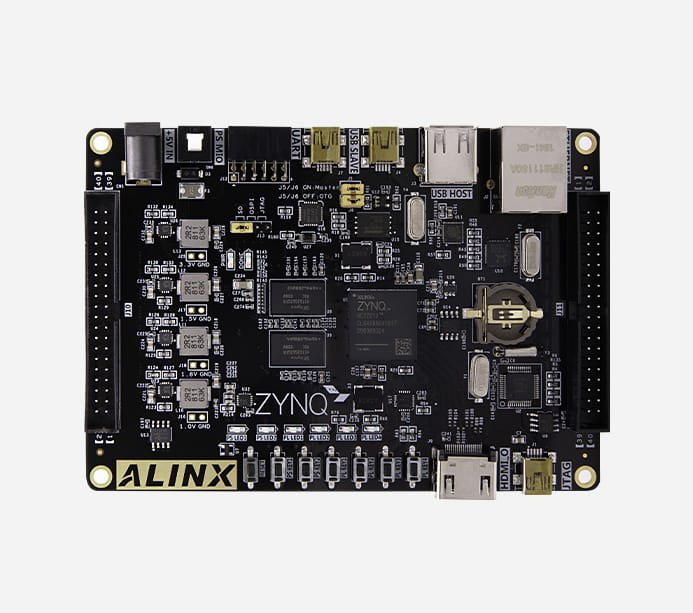

FPGA Boar AX7010

FPGA Chip XC7Z010-1ClG400I

Kernel Dual-Core ARM Cortex-A9

RAM DDR3 512MB, 32bit Bus, Data Rate 1066Mbps

Logic Cells 28k

Look-Up Tables ( LUTs ) 17600

CLB Flip-Flops 35200

Multiplier 80

Block RAM 2.1Mb

PS MIO 8

PL IO 94

Interface and Function

JTAG 1 USB JTAG Interface Onboard, No Need to Purchase Xilinx Downloader Use USB Cable and Onboard JTAG, Debug and Download ZYNQ System

Gigabit Ethernet 10 / 100 / 1000M Adaptive Ethernet Interface with RJ-45 Interface Used for Data Exchange with Computers and Other Network Equipment

HDMI HDMI Image and Video Input / Output Interface, Supports 1080@60Hz

USB HOST Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk

USB OTG Used for OTG Communication with PC or USB Device

ＵSB Uart Used for Serial Communication with PC or External Devices

Real Time Clock RTC with a Battery Holder, The Battery Model is CR1220（ Voltage 3V, buy it yourself ）

EEPROM EEPROM 24LC04 with IIC Interface

LED 6 User LEDs, 2 Controlled by PS, 4 Controlled by PL

Keys 7 Keys, 1 CPU Reset Key, 2 PS Control keys, 4 PL Control Keys

Crystal Oscillator 33.333Mhz,  Provide Stable Clock Source for the PS System
50MHz, Provide Extra Clock for PL Logic

TF Card Slot Insert Micro SD TF Card, Store Operating System Image and File System

PMOD 12-Pin Connectors ( 0.1 inch Pitch ), Expand the MIO of ZYNQ PS System

Expansion Port Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Expand the IOs of ZYNQ PL Connect with 7 inch LCD Screen, Camera, AD / DA and Other Modules.

Power Supply Parameters

Voltage Input +5V DC

Current Input Max. Current 2A
