65f808894ace9751433e9b5a Xilinx ZYNQ7000 SoC ARM SOM FPGA Core Board XC7Z035 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/65f8076c089496514ab027b2/333.jpg

ARM+FPGA SOC technology

dual core Cortex-A9, industrial grade

Product parameters

Core Board Parameters

Core Board-AC7Z035B

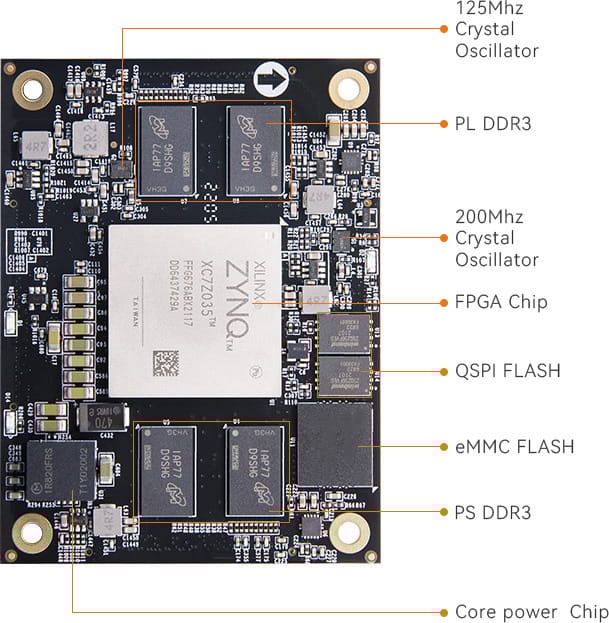

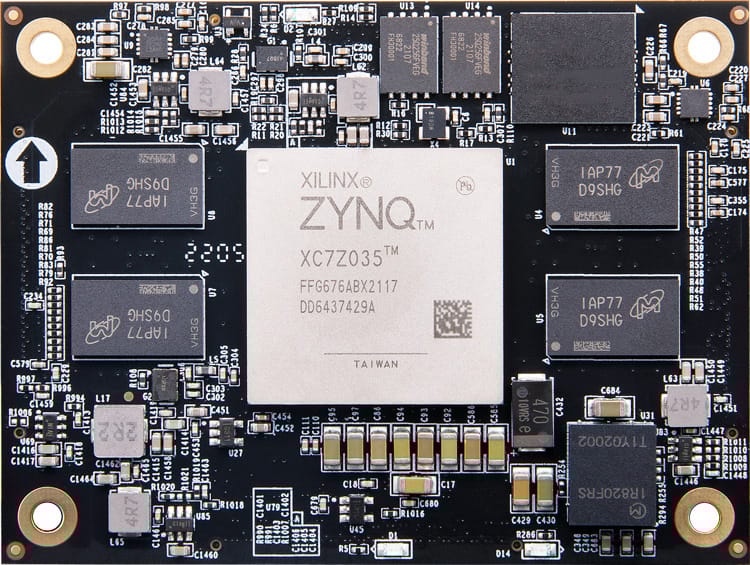

FPGA Chip-XC7Z035-2FFG676I

Chip CPU-2x ARM Cortex-A9, Dominant frequency 800MHz

PL side memory-1GB DDR3, Data rate 1600Mbps

PS side memory-1GB DDR3, Data rate 1066Mbps

Speed Grades- -2

Chip Level-Industrial Grade

Working Temperature- -40°C~85°C

Number of logical units-275k

Lookup table-171900

trigger-343800

Multiplier-900

transceiver-8 -Channels, PCIE Gen2 x8

Block RAM-17.6Mbit

MIO-37

PL IO-144

Adjustable voltage IO-96

LVDS differential pair-48 pairs

Functions and interfaces

EMMC FLASH-8GB EMMC flash chip is used to start the storage configuration and system files

QSPI Flash-Two 256Mbit QSPI flash for FPGA user data storage

AD converter-ADC is integrated inside the chip, 2 AD converters, which can measure on-chip voltage and temperature sensing, 17 external differential input channels, and the sampling rate is 1Mbps

Crystal oscillator-One crystal oscillator 33.333mhz provides clock input for PS terminal. A differential crystal oscillator 200MHz is used as the clock source of PL system and the reference clock of DDR3 controller. A differential crystal oscillator 125MHz provides a reference clock for GTX transceiver

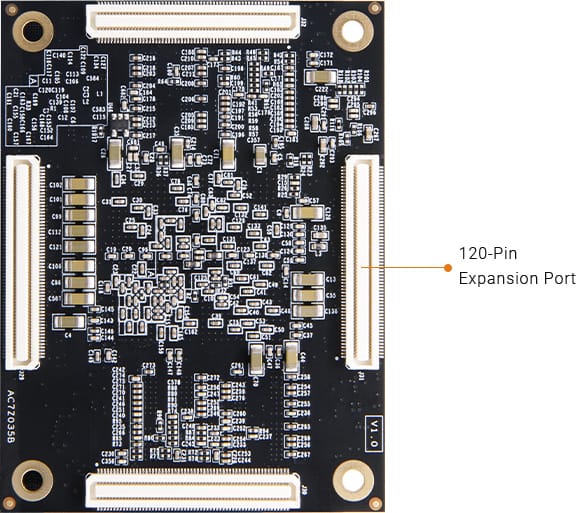

Expansion port-Four 120 pin Panasonic industrial grade connectors

Power parameters

Voltage Input-5V power supply

Packing list

FPGA SoM Board-1

structure size

Size Dimension-80mm x 60mm x 10.8mm

Connector Height-3.0mm

Number of Layers-12-Layer PCB

DATA SHEET

TT-XIL-AC7Z035B
in stockINR
Xilinx
1 1
Xilinx ZYNQ7000 SoC ARM SOM FPGA Core Board XC7Z035

Xilinx ZYNQ7000 SoC ARM SOM FPGA Core Board XC7Z035

Sku: TT-XIL-AC7Z035B
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Lead time is 3-4 weeks

Description of product

ARM+FPGA SOC technology

dual core Cortex-A9, industrial grade

Product parameters

Core Board Parameters

Core Board-AC7Z035B

FPGA Chip-XC7Z035-2FFG676I

Chip CPU-2x ARM Cortex-A9, Dominant frequency 800MHz

PL side memory-1GB DDR3, Data rate 1600Mbps

PS side memory-1GB DDR3, Data rate 1066Mbps

Speed Grades- -2

Chip Level-Industrial Grade

Working Temperature- -40°C~85°C

Number of logical units-275k

Lookup table-171900

trigger-343800

Multiplier-900

transceiver-8 -Channels, PCIE Gen2 x8

Block RAM-17.6Mbit

MIO-37

PL IO-144

Adjustable voltage IO-96

LVDS differential pair-48 pairs

Functions and interfaces

EMMC FLASH-8GB EMMC flash chip is used to start the storage configuration and system files

QSPI Flash-Two 256Mbit QSPI flash for FPGA user data storage

AD converter-ADC is integrated inside the chip, 2 AD converters, which can measure on-chip voltage and temperature sensing, 17 external differential input channels, and the sampling rate is 1Mbps

Crystal oscillator-One crystal oscillator 33.333mhz provides clock input for PS terminal. A differential crystal oscillator 200MHz is used as the clock source of PL system and the reference clock of DDR3 controller. A differential crystal oscillator 125MHz provides a reference clock for GTX transceiver

Expansion port-Four 120 pin Panasonic industrial grade connectors

Power parameters

Voltage Input-5V power supply

Packing list

FPGA SoM Board-1

structure size

Size Dimension-80mm x 60mm x 10.8mm

Connector Height-3.0mm

Number of Layers-12-Layer PCB

DATA SHEET
