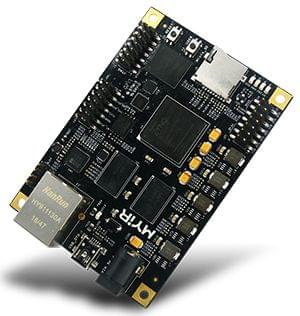

The Z-turn Lite is an ultra-cost-effective lite version of MYIR's Z-turn board. It is built around 667MHz Xilinx Zynq-7010 SoC which is among the new Zynq-7000 Family with a Dual-core ARM Cortex-A9 processor and integrated Artix-7 Field Programmable Gate Array (FPGA) logic. It is a minimal and compact system of Xilinx Z-7010 SoC and provides numerous pending configuration of PL resources. It is an excellent reference design and evaluation board for development based on Xilinx Zynq-7000 series SoCs.

The Z-turn Lite takes full features of the Z-7010 all programmable SoC.  It is equipped with 512MB DDR3, 4GB eMMC Flash, 16MB QSPI Flash and a set of peripherals including Micro USB OTG, 10/100/1000Mbps Ethernet, TF, JTAG, Debug UART, etc. Additionally, there is one 120 position connector socket on the rear of the board to bring out as many as IO signals for user extensions.The Z-turn Lite is capable of running Linux operating system and provided with Linux 3.15.0 SDK, the kernel and many drivers are in source code.

Applications

• Evaluation and Prototyping for Zynq-7000 AP SoC
• Multi-Axis Motor Control
• Machine Vision
• Programmable Logic Controller
• Industrial Automation
• Test & measurement
