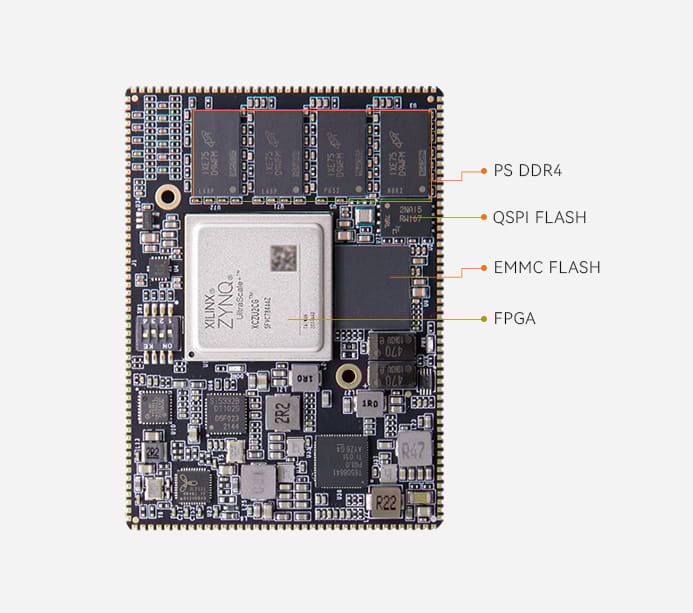

QSPI Flash-One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage
EMMC Flash-8GB, used in zynq system, can be used as a large capacity storage device of the system
Crystal oscillator-One passive crystal oscillator is provided to PS system\
Power Supply Parameters
Voltage Input- +12V DC
Package List
FPGA SoM Board-1
Structure Size
Size Dimension-70mm x 50mm
Number of Layers-16-Layer PCB
- Home
- XILINX FPGA
- Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU5EV

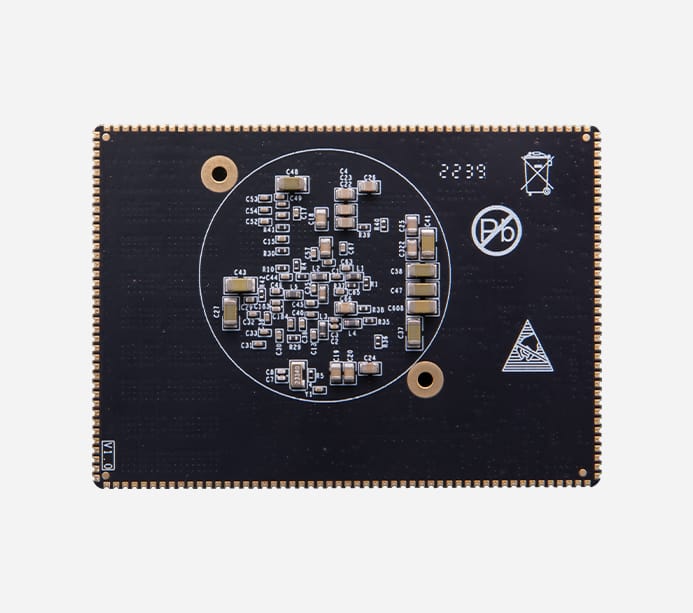

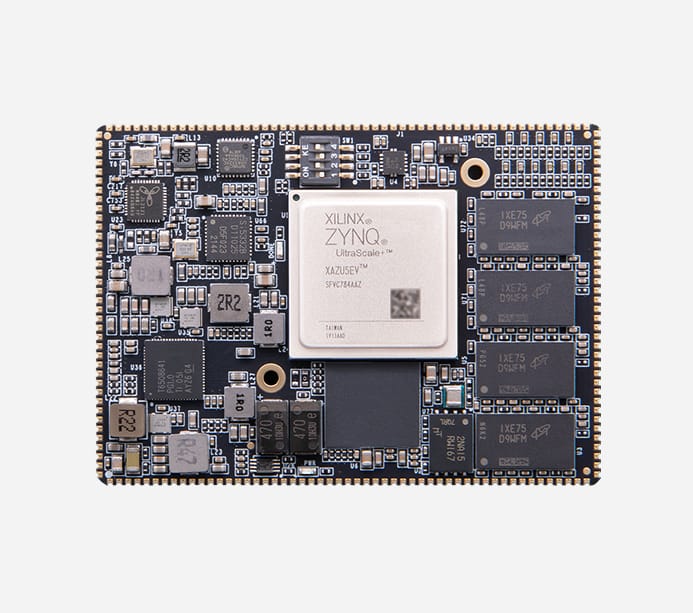

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU5EV
SIZE GUIDE
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
- Lead time is 3-4 weeks
Description of product
4 x ARM Cortex-A53, 2 x Cortex-R5 processor
Mali-400 MP2 GPU and 16nm finfet+ programmable logic are combined to form an H.264 / h.265 video codec, which can encode and decode 4k x 2k (60fps) video
Product parameters
Main Parameters
Core board-M5EV
FPGA Chip-XCZU5EV-2SFVC784I
Speed Grades- -2
Working Temperature-Industrial Grade, -40°C~85°C
CPU kernel-4x Cortex™-A53; 2x Cortex™-R5
CPU frequency-1.333GHz; 533MHz
GPU Graphic processing sheet-Mali™-400 MP2
High speed connection interface-PCIe Gen2 x1, 1x USB3.0, Sata 3.1, DisplayPort , 1x Tri-mode Gigabit Ethernet
Common connection interface-1x SD2.0, 1x JTAG
PS DDR4-4GB, 64bit
QSPI | EMMC Flash-32MB | 8GB
Logic Cells-256K
Flip-Flops-234K
LUTs-117K
Max. Distributed RAM-3.5Mb
Total Block RAM | UltraRAM-5.1Mb | 18.0Mb
Clock Management Tiles (CMTs)-4
DSP Slices-1248
Video Codec Unit-H.264 / H.265
PS MI/Os-15
PL I/Os-102
PL HP I/Os-96
PL HD I/Os-6
Connection mode-Stamp hole
Functions and interfaces
RAM-4GB DDR4, 64bit
QSPI Flash-One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage
EMMC Flash-8GB, used in zynq system, can be used as a large capacity storage device of the system
Crystal oscillator-One passive crystal oscillator is provided to PS system\
Power Supply Parameters
Voltage Input- +12V DC
Package List
FPGA SoM Board-1
Structure Size
Size Dimension-70mm x 50mm
Number of Layers-16-Layer PCB
