672b094b28bbf6002b5a38ac DS3231 RTC Module Precise Real Time Clock I2C AT24C32 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/672b094c28bbf6002b5a38b3/ds3231-precise-real-time-clock-module-i2c-rtc-at24c32-1.jpg

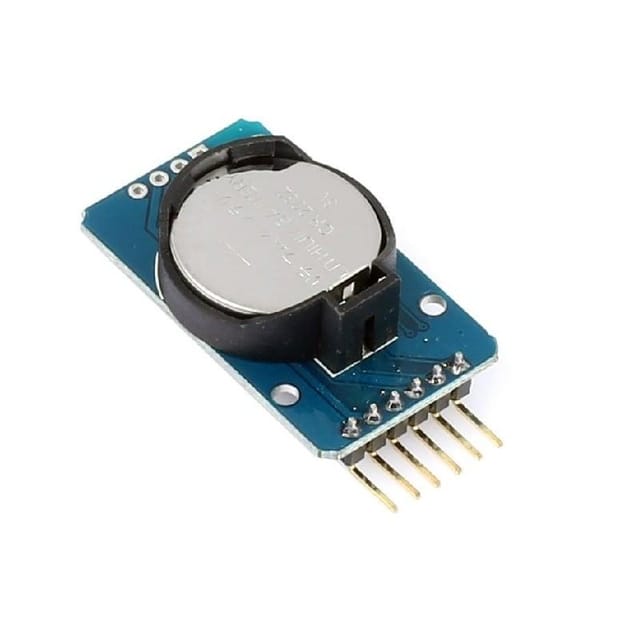

DS3231 RTC  is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C.

The DS3231 RTC module Precise Real-Time Clock Module is a low-cost, extremely accurate I²C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted.

The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The ds3231 Arduino is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.

For more details about the IC, the DS 3231 datasheet is attached.

Connection Diagram:

Generic Ds3231Sm Rtc 1

Features:

  1. Two Time-of-Day Alarms.
  2. Digital Temp Sensor Output.
  3. Register for Aging Trim.
  4. DS 3231 RTC with 2032 Battery Holder.
  5. Highly Accurate RTC Completely Manages All Timekeeping Functions.
  6. Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year, with Leap-Year Compensation Valid Up to 2100.
  7. Configurable I2C device Address for AT24C32 using SMD jumpers on PCB (A0, A1, A2).
  8. Programmable Square-Wave Output Signal.
  9. Battery-Backup Input for Continuous Timekeeping.
  10. Low Power Operation Extends Battery-Backup Run Time.

Package Includes :

1 x DS3231 Precise Real-Time Clock Module Memory Module

 TT-RB-11496
in stock INR 131
1 1

DS3231 RTC Module Precise Real Time Clock I2C AT24C32

Sku: TT-RB-11496
Be the first to review this product
₹131
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

DS3231 RTC  is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C.

The DS3231 RTC module Precise Real-Time Clock Module is a low-cost, extremely accurate I²C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted.

The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The ds3231 Arduino is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.

For more details about the IC, the DS 3231 datasheet is attached.

Connection Diagram:

Generic Ds3231Sm Rtc 1

Features:

  1. Two Time-of-Day Alarms.
  2. Digital Temp Sensor Output.
  3. Register for Aging Trim.
  4. DS 3231 RTC with 2032 Battery Holder.
  5. Highly Accurate RTC Completely Manages All Timekeeping Functions.
  6. Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year, with Leap-Year Compensation Valid Up to 2100.
  7. Configurable I2C device Address for AT24C32 using SMD jumpers on PCB (A0, A1, A2).
  8. Programmable Square-Wave Output Signal.
  9. Battery-Backup Input for Continuous Timekeeping.
  10. Low Power Operation Extends Battery-Backup Run Time.

Package Includes :

1 x DS3231 Precise Real-Time Clock Module Memory Module
