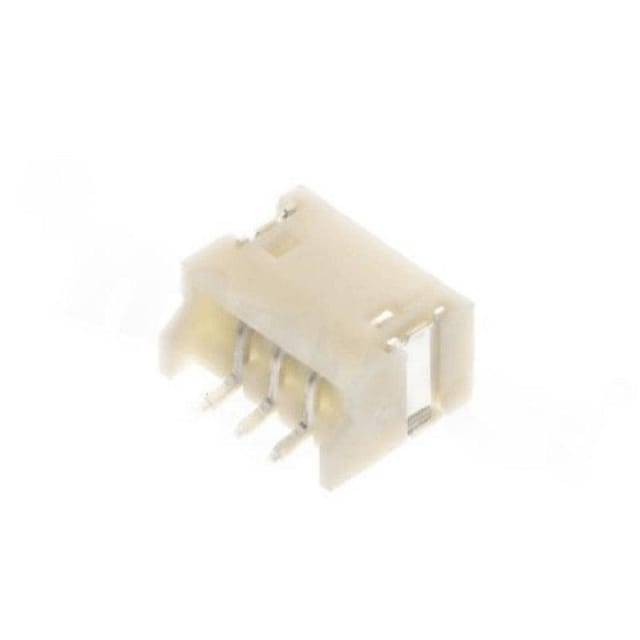

S3B-ZR-SM4A-TF(LF)(SN)-JST-1x3P 3P ZH Tin 3 -25℃~+85℃ 1A 1 1.5mm Brass Horizontal attachment SMD,P=1.5mm,Surface Mount，Right Angle Wire To Board Connector ROHS.1x3P 3P ZH Tin 3 -25℃~+85℃ 1A 1 1.5mm Brass Horizontal attachment SMD,P=1.5mm,Surface Mount，Right Angle Wire To Board Connector ROHS

Note: Images for reference only.

Specifications:

Y-Width of Bottom Edge on Board: 6.5mm
Pins Structure: 1x3P
Number of Pins: 3P
Reference Series: ZH
Contact Plating: Tin
Row Spacing: –
Number of PINs Per Row: 3
Operating Temperature Range: -25℃~+85℃
Current Rating (Max): 1A
Plastic Material: PA6T
Colour: White
Supplementary Features: Auxiliary soldering legs
Number of Rows: 1
Flame Retardant Rating: UL94V-0
Pitch: 1.5mm
Rated Voltage (Max): 50V
Contact Material: Brass
X-Length of Bottom Edge on Board (Spacing Line): 7.5mm
Z-Height of the Board: 3.7mm
Mounting Style: Horizontal attachment

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x S3B-ZR-SM4A-TF(LF)(SN)-JST-1x3P 3P ZH Tin 3 -25℃~+85℃ 1A 1 1.5mm Brass Horizontal attachment SMD,P=1.5mm,Surface Mount，Right Angle Wire To Board Connector ROHS
