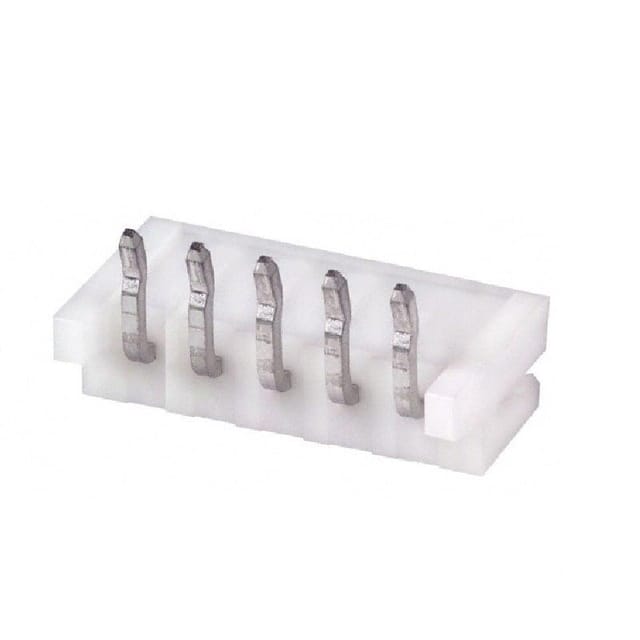

S5B-EH(LF)(SN)-JST-1x5P 5P EH Tin 5 -25℃~+85℃ 3A 1 2.5mm Brass Bend insert Push-Pull,P=2.5mm Wire To Board Connector ROHS.1x5P 5P EH Tin 5 -25℃~+85℃ 3A 1 2.5mm Brass Bend insert Push-Pull,P=2.5mm Wire To Board Connector ROHS

Note: Images for reference only.

Specifications:

Y-Width of Bottom Edge on Board: 8.2mm
Pins Structure: 1x5P
Number of Pins: 5P
Reference Series: EH
Contact Plating: Tin
Row Spacing: –
Number of PINs Per Row: 5
Operating Temperature Range: -25℃~+85℃
Current Rating (Max): 3A
Plastic Material: PA66
Colour: White
Supplementary Features: K-leg punch
Number of Rows: 1
Flame Retardant Rating: UL94V-0
Pitch: 2.5mm
Rated Voltage (Max): 250V
Contact Material: Brass
X-Length of Bottom Edge on Board (Spacing Line): 15mm
Z-Height of the Board: 4.2mm
Mounting Style: Bend insert

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x S5B-EH(LF)(SN)-JST-1x5P 5P EH Tin 5 -25℃~+85℃ 3A 1 2.5mm Brass Bend insert Push-Pull,P=2.5mm Wire To Board Connector ROHS
