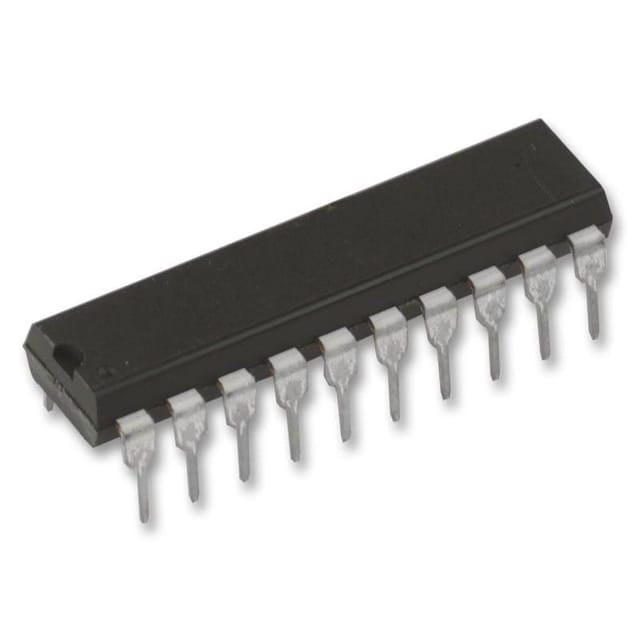

The ATTINY26L-8PU is a low-power 8-bit CMOS Microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny26L achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the arithmetic logic unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers. The ATtiny26L provides 2kB of flash, 128byte EEPROM and 128byte SRAM. The device supports throughput of 8MIPS at 8MHz.

Specifications:

Operating Frequency Max: 8MHz
Program Memory Size: 2KB
IC Case / Package: DIP
Device Core: AVR
MCU Series: ATtiny26
Supply Voltage Min: 2.7V
Operating Temperature Min: -40°C
MCU Family: AVR ATtiny
No. of Pins: 20Pins
ADC Resolution: 10Bit
No. of I/O’s: 16I/O’s
IC Mounting: Through Hole
Supply Voltage Max: 5.5V
RAM Memory Size: 128Byte
ADC Channels: 11Channels
Interfaces: I2C, SPI
Operating Temperature Max: 85°C

Package Includes:

1 x ATTINY26L-8PU-Microchip Technology Inc.-ATTINY26L-8PU-8 Bit MCU, Low Power High Performance, AVR ATtiny Family ATtiny26 Series Microcontrollers, AVR
