The ATTINY10-TSHR is an 8-bit high-performance low-power AVR RISC-based Microcontroller combines 1kB ISP flash memory, 32B SRAM, four general purpose I/O lines, 16 general purpose working registers, a 16-bit timer/counter with two PWM channels, internal and external interrupts, programmable watchdog timer with internal oscillator, an internal calibrated oscillator, a 4-channel/8-bit A/D converter, and four software selectable power saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Applications:

1. Industrial
2. Computers & Computer Peripherals

Features:

1. Non-volatile program and data memories
2. Peripheral features – On-chip analog comparator
3. In-System Programmable (at 5V, only)
4. External and internal interrupt sources
5. Low power idle, ADC noise reduction and power-down modes
6. Enhanced power-on reset circuit
7. Programmable supply voltage level monitor with interrupt and reset
8. Internal calibrated oscillator

Package Includes:

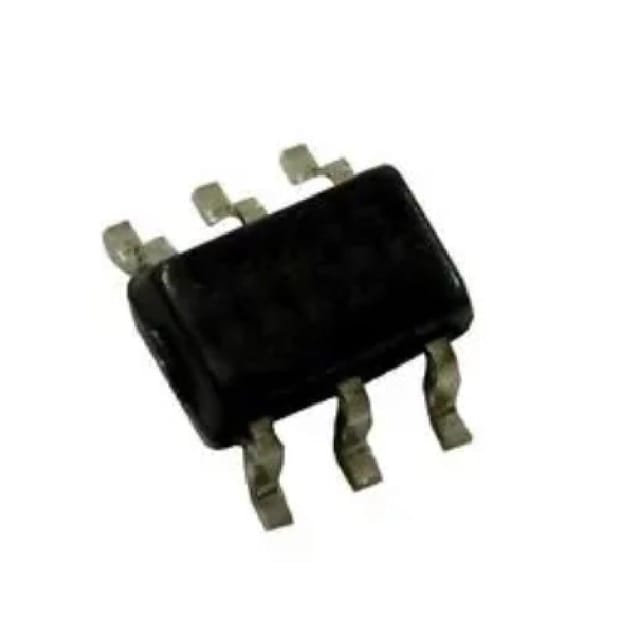

1 x ATTINY10-TSHR MICROCHIP 8 Bit MCU, Low Power High Performance, AVR ATtiny Family ATtiny10 Series Microcontrollers, AVR
