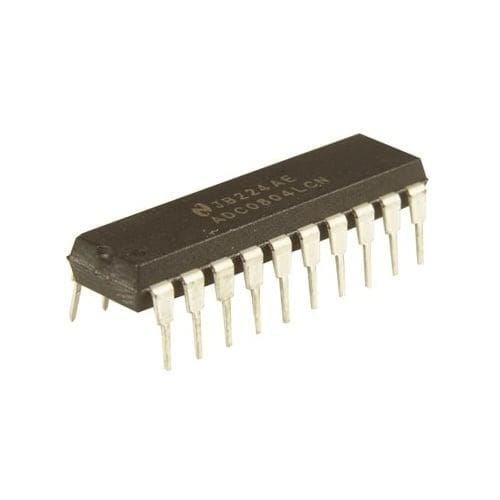

672afabd79a4370024a1b4bf ADC0804LCN PDIP-20 Analog to Digital Converter-ADC https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/672afabe79a4370024a1b4c1/adc0804lcn-pdip-20-analog-to-digital-converter-adc-2.jpg
The ADC0804LCN is an 8bit microprocessor compatible Analogue to Digital Converter (ADC) in 20 pin DIP package. This ADC uses a differential potentiometric ladder and it is designed to allow operation with NSC800 and INS8080A derivative control bus with tristate output latches directly driving data bus. The ADC0804LCN appears like memory locations or I/O ports to the microprocessor and no interfacing logic is needed. Differential analogue voltage inputs allow increasing common mode rejection and offsetting analogue zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding of smaller analogue voltage span to the full 8bit resolution.
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability. Please refer the datasheet for more technical details.

Features:

  1. Supply voltage range from 4.5V to 6.3V
  2. Sampling rate is 9.708KSPS
  3. Compatible with 8080 microprocessor derivatives, no interfacing logic needed
  4. Differential analogue voltage inputs
  5. Logic inputs and outputs meet both MOS and TTL voltage level specifications
  6. Works with 2.5V (LM336) voltage reference
  7. On-chip clock generator
  8. Operating temperature range -40°C to 85°C
  9. No zero adjust required
  10. Easy interface to all microprocessors and operates as a standalone device
  11. Applications: Signal Processing

Package Includes:

1 x ADC0804LCN PDIP-20 Analog to Digital Converter-ADC

 TT-RB-162174
in stock INR 628
1 1

ADC0804LCN PDIP-20 Analog to Digital Converter-ADC

Sku: TT-RB-162174
Be the first to review this product
₹628
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

The ADC0804LCN is an 8bit microprocessor compatible Analogue to Digital Converter (ADC) in 20 pin DIP package. This ADC uses a differential potentiometric ladder and it is designed to allow operation with NSC800 and INS8080A derivative control bus with tristate output latches directly driving data bus. The ADC0804LCN appears like memory locations or I/O ports to the microprocessor and no interfacing logic is needed. Differential analogue voltage inputs allow increasing common mode rejection and offsetting analogue zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding of smaller analogue voltage span to the full 8bit resolution.
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability. Please refer the datasheet for more technical details.

Features:

  1. Supply voltage range from 4.5V to 6.3V
  2. Sampling rate is 9.708KSPS
  3. Compatible with 8080 microprocessor derivatives, no interfacing logic needed
  4. Differential analogue voltage inputs
  5. Logic inputs and outputs meet both MOS and TTL voltage level specifications
  6. Works with 2.5V (LM336) voltage reference
  7. On-chip clock generator
  8. Operating temperature range -40°C to 85°C
  9. No zero adjust required
  10. Easy interface to all microprocessors and operates as a standalone device
  11. Applications: Signal Processing

Package Includes:

1 x ADC0804LCN PDIP-20 Analog to Digital Converter-ADC
