Inolux 1830-1097-2-ND,1830-1097-1-ND,1830-1097-6-ND
Sku: TT-DKEY-1830-1097-2-ND,1830-1097-1-ND,1830-1097-6-ND
₹1,131.84
Features
- Shipping in 10-12 Working Days
Description of product

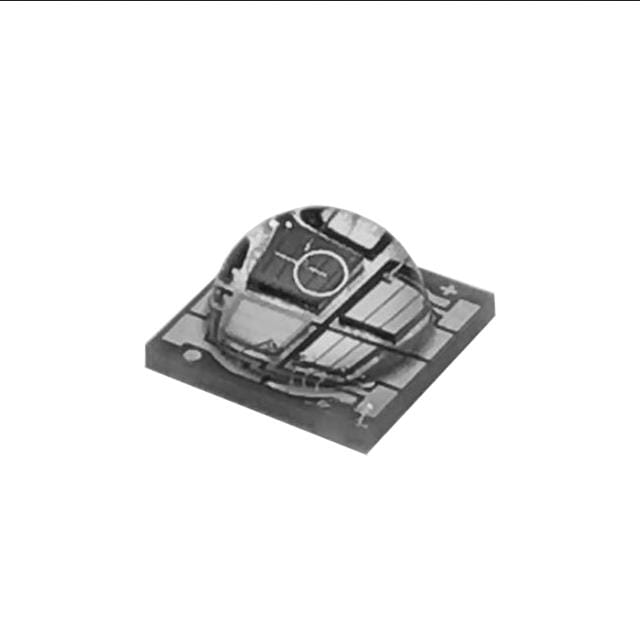

LED IN-505 RGBW 625/525/463/6650
Product Attributes:
| Series | IN-505 |
| Product Status | Active |
| Color | Red, Green, Blue, White - Cool (RGBW) |
| Wavelength | 625nm Red, 525nm Green, 463nm Blue, 6650K White |
| Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Voltage - Forward (Vf) (Typ) | 2.65V Red, 3.7V Green, 3.6V Blue, 3.6V White |
| Lumens/Watt @ Current - Test | 52 lm/W Red, 67 lm/W Green, 13 lm/W Blue, 79 lm/W White |
| Current - Max | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Luminous Flux @ Current/Temperature | 97lm Red (80lm ~ 114lm), 173lm Green (150lm ~ 195lm), 33lm Blue (25lm ~ 40lm), 200lm White (180lm ~ 220lm) |
| Temperature - Test | 25°C |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Package / Case | 2020 (5050 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.113" (2.88mm) |
