Cree LED 2138-JE2835APO-N-0001A0000-N0000001TR-ND,2138-JE2835APO-N-0001A0000-N0000001CT-ND,2138-JE2835APO-N-0001A0000-N0000001DKR-ND
Sku: TT-DKEY-2138-JE2835APO-N-0001A0000-N0000001TR-ND,2138-JE2835APO-N-0001A0000-N0000001CT-ND,2138-JE2835APO-N-0001A0000-N0000001DKR-ND
₹37.44
Features
- Shipping in 10-12 Working Days
Description of product

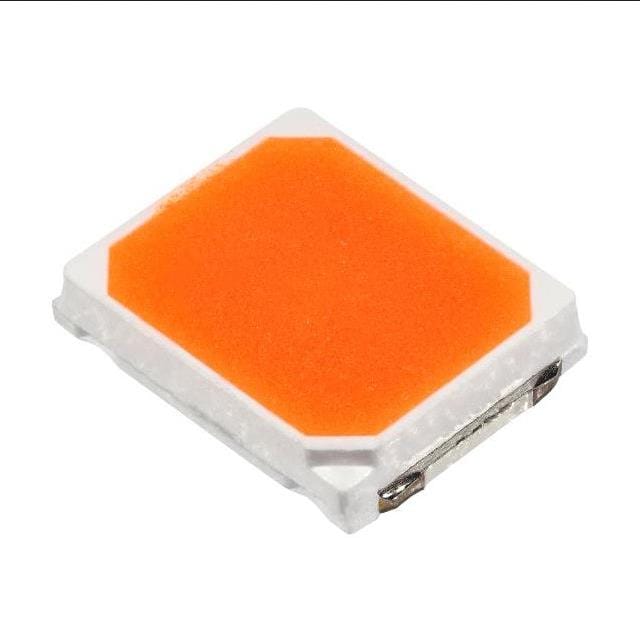

JE2835 3V N CLASS PC RED-ORANGE
Product Attributes:
| Series | J |
| Product Status | Active |
| Color | Red-Orange |
| Wavelength | - |
| Current - Test | 140mA |
| Voltage - Forward (Vf) (Typ) | 2.96V |
| Lumens/Watt @ Current - Test | 70 lm/W |
| Current - Max | 240mA |
| Luminous Flux @ Current/Temperature | 29lm (28lm ~ 30lm) |
| Temperature - Test | 25°C |
| Viewing Angle | 113° |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Supplier Device Package | 1411 |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
