Cree LED 90-XMLDCL-00-R250-00C5AAA02TR-ND,90-XMLDCL-00-R250-00C5AAA02CT-ND,90-XMLDCL-00-R250-00C5AAA02DKR-ND
Sku: TT-DKEY-90-XMLDCL-00-R250-00C5AAA02TR-ND,90-XMLDCL-00-R250-00C5AAA02CT-ND,90-XMLDCL-00-R250-00C5AAA02DKR-ND
₹1,667.52
Features
- Shipping in 10-12 Working Days
Description of product

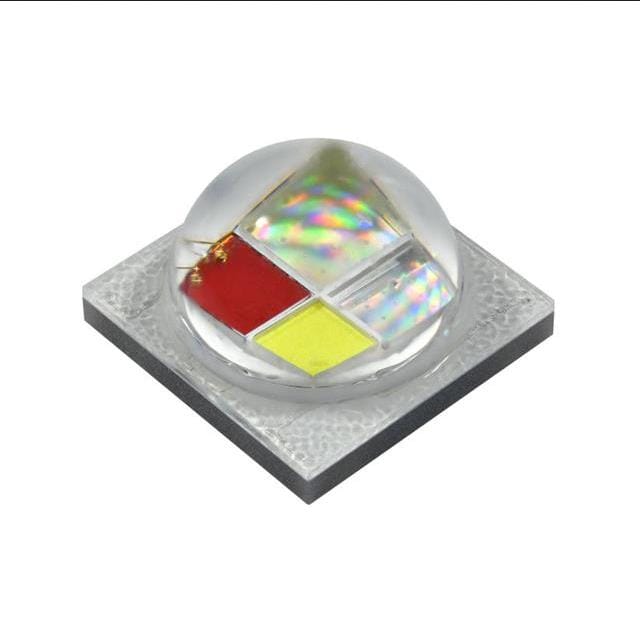

XLAMP XMLDCL HD LIGHT EMITTING D
Product Attributes:
| Series | XLamp® XM-L® Gen 2 |
| Product Status | Active |
| Color | Red, Green, Blue, White (RGBW) |
| Wavelength | 625nm Red, 528nm Green, 458nm Blue, 6850K |
| Current - Test | 350mA Red, 350mA Green, 350mA Blue, 350mA White |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 2.6V Green, 2.9V Blue, 2.9V White |
| Lumens/Watt @ Current - Test | 109 lm/W Red, 170 lm/W Green, 23 lm/W Blue, 153 lm/W White |
| Current - Max | 1.75A Red, 1.75A Green, 1.75A Blue, 1.75A White |
| Luminous Flux @ Current/Temperature | 80lm Red, 155lm Green, 23lm Blue, 155lm White |
| Temperature - Test | 25°C |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Package / Case | 2020 (5050 Metric) |
| Supplier Device Package | 2020 |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.124" (3.15mm) |
