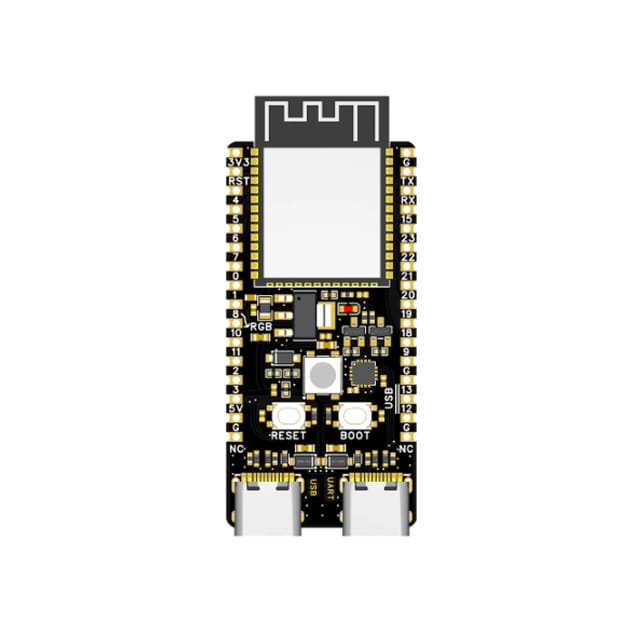

The WeAct ESP32-C6 Development Board is a feature-rich solution designed to meet the demands of IoT projects, offering high performance, versatile connectivity, ample memory, and a compact design.

Features:

1. Equipped with a 32-bit RISC-V single-core processor running at 160MHz, ensuring swift execution of tasks.
2. Supports Wi-Fi IEEE 802.11 ax 2.4GHz, Bluetooth LE 5, and IEEE 802.15.4 (Zigbee and Thread), offering versatile connectivity options.
3. Features 512KB SRAM and 320KB ROM, providing sufficient memory for data storage and program execution.
4. Offers 30 or 22 GPIOs, 3x SPI, 2x UART, 1x I2C, RMT, LED PWM 6ch, 1x 12-bit ADC with 7ch, TWAI®, USB Serial/JTAG, ETM, MCPWM, and SDIO Slave, facilitating easy integration with peripherals.
5. With dimensions of 25.5mm x 51.8mm, the ESP32-C6 Development Board boasts a compact form factor suitable for various IoT applications.

Package Includes:

1 x WeAct Studio ESP32-C6-A-N4 Development Board ESP32C6 Minimum System Board ESP32 Core RISC-V Espressif IoT WiFi6 Bluetooth Zigbee
