The wiring of this voltmeter is simple, only two wires need to be connected, the red wire is connected to the positive, and the black wire is connected to the negative. There is reverse connection protection in the meter, and the reverse connection does not burn.

This voltmeter does not require an external working power supply, it can work directly with the measured voltage, and the working voltage range is as wide as 70-500V.
In order to achieve the best measurement accuracy, the voltmeter will automatically move the position of the decimal point according to the difference of the measured voltage. decimal point.
This voltmeter can be used to monitor the battery voltage of motorcycles, automobiles, etc., and grasp the battery status in time. It can also be used for other voltage measurement purposes.

Note:

1. Consider 1V voltage drop at voltmeter itself, as we observed it at Tenet Technetronicslabs while testing this Voltmeter.
2. Product Image may vary in terms of colour Wire and PCB or PCB layout as per the version update from the manufacturer

Features :

1. Very small and lightweight voltmeter module.
2. Very handy and easy to use.
3. RED LED display.
4. Best operates in the working voltage range of 70V to 380V
5. Matt finish Display glass makes display Digits more Lucid in the daytime.
6. 100% Brand new and high quality.

Package Includes :

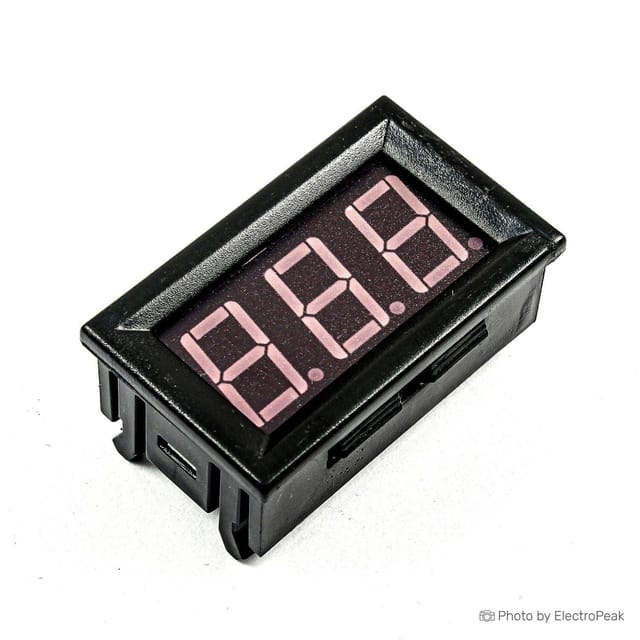

1 x 0.56inch Red AC220V Two Wire Voltmeter 70V ~ 500V
