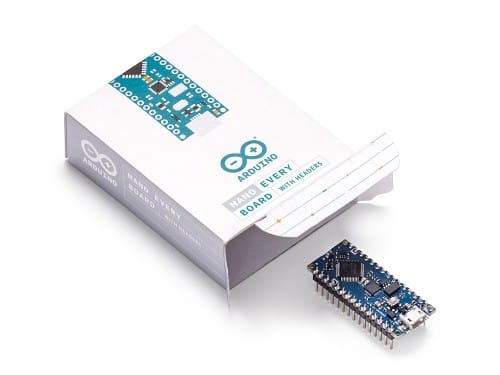

The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm! The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a large project.
The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).
The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!
The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a large project.
Microcontroller | ATMega4809 (datasheet) |
Operating Voltage | 5V |
VIN min-MAX | 7-21V |
DC Current per I/O Pin | 20 mA |
DC Current for 3.3V Pin | 50 mA |
Clock Speed | 20MHz |
CPU Flash Memory | 48KB (ATMega4809) |
SRAM | 6KB (ATMega4809) |
EEPROM | 256byte (ATMega4809) |
PWM Pins | 5 (D3, D5, D6, D9, D10) |
UART | 1 |
SPI | 1 |
I2C | 1 |
Analog Input Pins | 8 (ADC 10 bit) |
Analog Output Pins | Only through PWM (no DAC) |
External Interrupts | all digital pins |
LED_BUILTIN | 13 |
USB | Uses the ATSAMD11D14A (datasheet) |
Length | 45 mm |
Width | 18 mm |
Weight | 5 gr (with headers) |
The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm! The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a large project.
The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).
The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!
The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a large project.
Microcontroller | ATMega4809 (datasheet) |
Operating Voltage | 5V |
VIN min-MAX | 7-21V |
DC Current per I/O Pin | 20 mA |
DC Current for 3.3V Pin | 50 mA |
Clock Speed | 20MHz |
CPU Flash Memory | 48KB (ATMega4809) |
SRAM | 6KB (ATMega4809) |
EEPROM | 256byte (ATMega4809) |
PWM Pins | 5 (D3, D5, D6, D9, D10) |
UART | 1 |
SPI | 1 |
I2C | 1 |
Analog Input Pins | 8 (ADC 10 bit) |
Analog Output Pins | Only through PWM (no DAC) |
External Interrupts | all digital pins |
LED_BUILTIN | 13 |
USB | Uses the ATSAMD11D14A (datasheet) |
Length | 45 mm |
Width | 18 mm |
Weight | 5 gr (with headers) |
