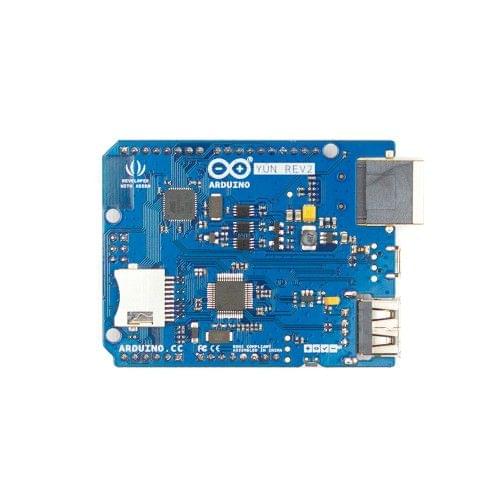

5db187b9c6b13f2bfb5016ee Arduino Yún Rev 2 (Orginal Arduino-Italy) https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5db187b9c6b13f2bfb5016ee/images/5db187b9c6b13f2bfb5016f0/5db186af20bd143ddfeba371/5db186af20bd143ddfeba371.jpg

Description

Arduino Yún Rev 2 is a Microcontroller Board based on the Microchip Technology ATmega32U4 8-bit Microcontroller and the Qualcomm Atheros AR9331 Processor. The Atheros Processor supports a Linux distribution based on OpenWrt named LininoOS. The board has built-in 802.3 10/100Mbit/s Ethernet and Wi-Fi® 802.11b/g/n 2.4GHz, making it ideal for connected IoT (Internet of Things) applications. Connection to a Wi-Fi or wired network is simple thanks to the YÚN Web Panel and the dedicated ''YunFirstConfig'' sketch. Using the Yún Web Panel it is also possible to configure all the shield-related features and remotely upload sketches on the board connected to the shield. The Yún Rev 2 uses the Bridge library, extending the functionalities of the Microprocessor by using the computational power of the Linux processor on the board.

The Yún Rev 2 offers a space saving hoizontal Micro USB port and full USB 2.0 host, and a low-profile Ethernet 10/100 RJ45 port, designed to avoid potential short circuits when used with shields. Additional features include a microSD card slot, 20 digital input/output pins (7 of which can be used as PWM outputs and 12 as analog inputs), a 16MHz crystal oscillator, an ICSP header, 4 on-board status LEDs, and 3 reset buttons.

The hardware, software, and documentation of the Yún Rev 2 is freely available and open-source. This means that developers can learn exactly how it's made and use its design as the starting point for their own projects.



Note: This is 100% Original ARDUINO board.

Specifications:

AVR Microcontroller: ATmega32u4

  • Operating Voltage: 5V
  • Digital I/O Pins: 20
  • PWM Output: 7
  • Analogue I/O Pins: 12
  • DC Current per I/O Pin: 40mA (50mA on 3.3V pin)
  • Flash Memory: 32KB (4KB used by bootloader)
  • SRAM: 2.5KB
  • EEPROM: 1KB
  • Clock Speed: 16MHz

Linux Microprocessor: Atheros AR9331

  • Operating Voltage: 3.3V
  • Ethernet: IEEE 802.3 10/100Mb/s
  • WiFi: IEEE 802.11b/g/n 2.4GHz
  • RAM: 64MB DDR2
  • Flash Memory: 16MB
  • USB 2.0 Host port
  • MicroSD Card Reader

PackageIncludes:

  • 1 x Arduino Yún Rev 2 (Orginal Arduino-Italy)

TT-RDK-3314
in stockINR
Arduino
1 1
Arduino Yún Rev 2 (Orginal Arduino-Italy)

Arduino Yún Rev 2 (Orginal Arduino-Italy)

Sku: TT-RDK-3314
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5db187b9c6b13f2bfb5016ee/images/5db187b9c6b13f2bfb5016ef/5db186ab7030503ddeb0a201/5db186ab7030503ddeb0a201.jpg

Description of product

Description

Arduino Yún Rev 2 is a Microcontroller Board based on the Microchip Technology ATmega32U4 8-bit Microcontroller and the Qualcomm Atheros AR9331 Processor. The Atheros Processor supports a Linux distribution based on OpenWrt named LininoOS. The board has built-in 802.3 10/100Mbit/s Ethernet and Wi-Fi® 802.11b/g/n 2.4GHz, making it ideal for connected IoT (Internet of Things) applications. Connection to a Wi-Fi or wired network is simple thanks to the YÚN Web Panel and the dedicated ''YunFirstConfig'' sketch. Using the Yún Web Panel it is also possible to configure all the shield-related features and remotely upload sketches on the board connected to the shield. The Yún Rev 2 uses the Bridge library, extending the functionalities of the Microprocessor by using the computational power of the Linux processor on the board.

The Yún Rev 2 offers a space saving hoizontal Micro USB port and full USB 2.0 host, and a low-profile Ethernet 10/100 RJ45 port, designed to avoid potential short circuits when used with shields. Additional features include a microSD card slot, 20 digital input/output pins (7 of which can be used as PWM outputs and 12 as analog inputs), a 16MHz crystal oscillator, an ICSP header, 4 on-board status LEDs, and 3 reset buttons.

The hardware, software, and documentation of the Yún Rev 2 is freely available and open-source. This means that developers can learn exactly how it's made and use its design as the starting point for their own projects.



Note: This is 100% Original ARDUINO board.

Specifications:

AVR Microcontroller: ATmega32u4

  • Operating Voltage: 5V
  • Digital I/O Pins: 20
  • PWM Output: 7
  • Analogue I/O Pins: 12
  • DC Current per I/O Pin: 40mA (50mA on 3.3V pin)
  • Flash Memory: 32KB (4KB used by bootloader)
  • SRAM: 2.5KB
  • EEPROM: 1KB
  • Clock Speed: 16MHz

Linux Microprocessor: Atheros AR9331

  • Operating Voltage: 3.3V
  • Ethernet: IEEE 802.3 10/100Mb/s
  • WiFi: IEEE 802.11b/g/n 2.4GHz
  • RAM: 64MB DDR2
  • Flash Memory: 16MB
  • USB 2.0 Host port
  • MicroSD Card Reader

PackageIncludes:

  • 1 x Arduino Yún Rev 2 (Orginal Arduino-Italy)
