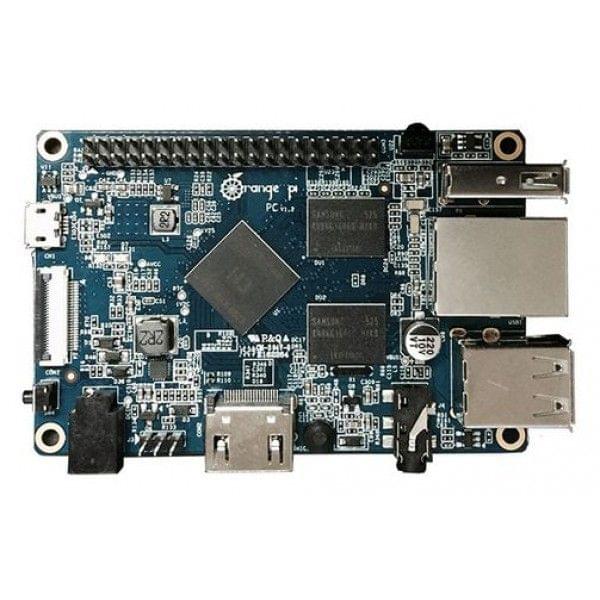

Hardware specification

CPU

H3 Quad-core Cortex-A7 H.265/HEVC 4K

GPU

·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0

Memory (SDRAM)

1GB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 64GB) / MMC card slot

Onboard Network

10/100M Ethernet RJ45

Video Input

A CSI input connector Camera:

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Audio Input

MIC

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Integrated CVBS

Supports simultaneous output of HDMI and CVBS

Audio Output

3.5 mm Jack and HDMI

Power Source

DC input can supply power, but USB OTG input don’t supply power

USB 2.0 Ports

Three USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power Button(SW4)

Low-level peripherals

40 Pins Header,compatible with Raspberry Pi B+

GPIO(1x3) pin

UART, ground.

LED

Power led & Status led

Key

IR input, POWER

Supported OS

Android Ubuntu, Debian, Rasberry Pi Image

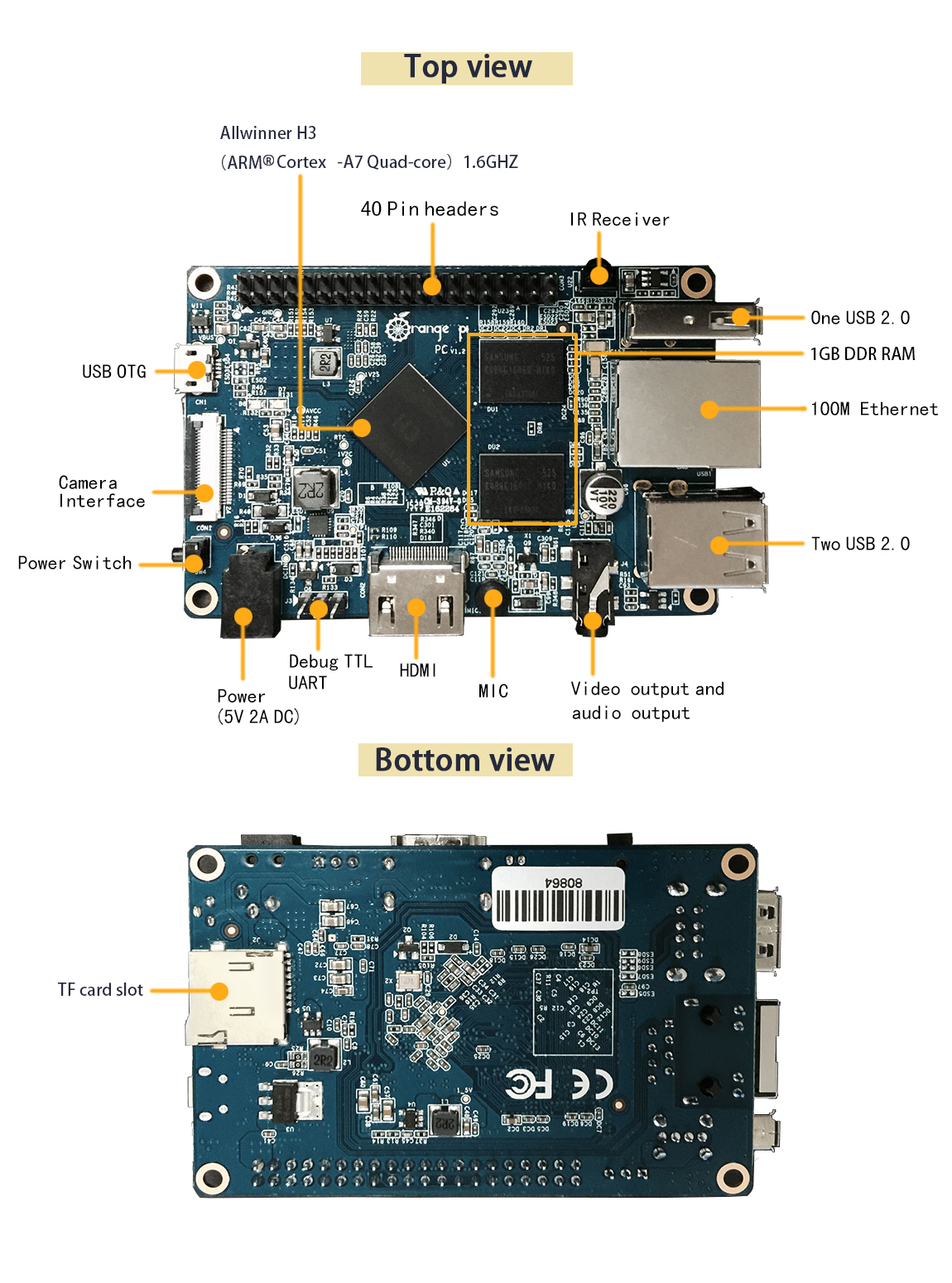

Interface definition

Product size

85 mm × 55mm

Weight

38g
