Description

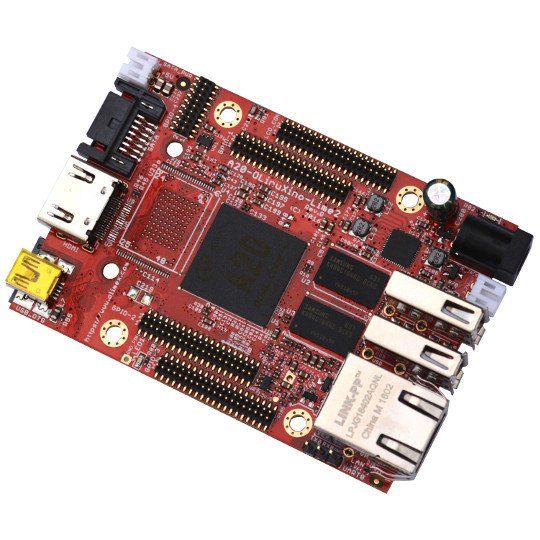

Upgraded and improved version of A20-OLinuXino-LIME with double the RAM and Gigabit Ethernet
We offer several variants of this board. Aside from the base version we offer a variant with extra eMMC or NAND flash memory (suffix -e4G, -e16G, or -n8G); we have a variant with 16MB SPI flash memory (suffix -s16M). We also have variants of the board suitable for industrial temperature range of operation (-40+85)C - these come with the "T2" chip and have "-IND" suffix in the name.
Features
Allwinner A20/T2 dual core Cortex-A7 processor, each core typically running at 1GHz and dual-core Mali 400 GPU
1GB DDR3 RAM memory
8GB NAND flash memory option (in A20-OLinuXino-LIME2-n8GB)
4GB or 16GB eMMC flash memory option (in A20-OLinuXino-LIME2-e4GB or A20-OLinuXino-LIME2-e16GB)
16MB SPI flash option (-s16MB suffix)
Commercial temeprature range (industrial temeprature range option for -IND variants)
Native SATA support with connector and 5V SATA power jack
Capable of FullHD (1080p) video playback
Native HDMI support with connector
2 x USB High-speed host with power control and current limiter
USB-OTG with power control and current limiter
1000MBit native Ethernet
LiPo Battery connector with battery-charging capabilities
LCD row of pins (0.05'' step)
160 GPIOs on four GPIO rows of pins (0.05'' step)
MicroSD card connector
DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
GPIO LED
Battery charge status LED
Power LED
2KB EEPROM for MAC address storage and more
3 BUTTONS with ANDROID functionality + RESET button
4 mount holes
5V DC input power supply jack, noise immune design
PCB dimensions: (84 x 60)mm ~ (3.3 x 2.4)"
TT-OLI-A20LIME2(n8G)
Description
Upgraded and improved version of A20-OLinuXino-LIME with double the RAM and Gigabit Ethernet
We offer several variants of this board. Aside from the base version we offer a variant with extra eMMC or NAND flash memory (suffix -e4G, -e16G, or -n8G); we have a variant with 16MB SPI flash memory (suffix -s16M). We also have variants of the board suitable for industrial temperature range of operation (-40+85)C - these come with the "T2" chip and have "-IND" suffix in the name.
Features
Allwinner A20/T2 dual core Cortex-A7 processor, each core typically running at 1GHz and dual-core Mali 400 GPU
1GB DDR3 RAM memory
8GB NAND flash memory option (in A20-OLinuXino-LIME2-n8GB)
4GB or 16GB eMMC flash memory option (in A20-OLinuXino-LIME2-e4GB or A20-OLinuXino-LIME2-e16GB)
16MB SPI flash option (-s16MB suffix)
Commercial temeprature range (industrial temeprature range option for -IND variants)
Native SATA support with connector and 5V SATA power jack
Capable of FullHD (1080p) video playback
Native HDMI support with connector
2 x USB High-speed host with power control and current limiter
USB-OTG with power control and current limiter
1000MBit native Ethernet
LiPo Battery connector with battery-charging capabilities
LCD row of pins (0.05'' step)
160 GPIOs on four GPIO rows of pins (0.05'' step)
MicroSD card connector
DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
GPIO LED
Battery charge status LED
Power LED
2KB EEPROM for MAC address storage and more
3 BUTTONS with ANDROID functionality + RESET button
4 mount holes
5V DC input power supply jack, noise immune design
PCB dimensions: (84 x 60)mm ~ (3.3 x 2.4)"
