Description

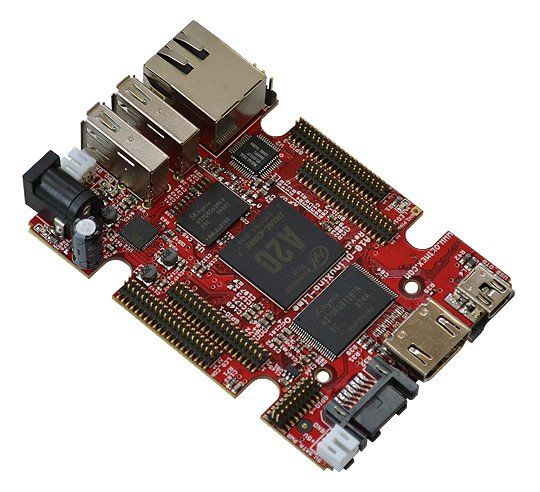

A20-OLinuXino-LIME is a very compact (84x60)mm Linux open source hardware computer

Features

  • Allwinner A20 dual core Cortex-A7 processor, each core typically running at 1GHz and dual-core Mali 400 GPU
  • 512MB DDR3 RAM memory
  • 4GB NAND Flash (for A20-OLinuXino-LIME-4GB)
  • SATA connector with 5V SATA power jack
  • Capable of FullHD (1080p) video playback
  • HDMI connector
  • 2 x USB High-speed host with power control and current limiter
  • USB-OTG with power control and current limiter
  • 100MBit native Ethernet
  • LiPo Battery connector with battery-charging capabilities
  • LCD connector compatible with with 4.3", 7.0", 10.1" LCD modules from Olimex
  • 160 GPIOs on four GPIO connectors
  • MicroSD card connector
  • DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
  • GPIO LED
  • Battery charge status LED
  • Power LED
  • 2KB EEPROM for MAC address storage and more
  • 3 BUTTONS with ANDROID functionality + RESET button
  • 4 mount holes
  • 5V input power supply, noise immune design
  • PCB dimensions: 84 x 60 mm
     TT-Oli-04_4GB
    in stock INR 7590.704
    OLIMEX
    1 1
    A20-OLinuXino-LIME

    A20-OLinuXino-LIME

    Sku: TT-Oli-04_4GB
    Be the first to review this product
    ₹7,590.7
    Add to Cart Buy Now
    Sold By: tenettech
    Features
    • Shipping in 10-12 Working days
    • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a0d3fc4f290e1c4477bae05/images/5a0d3fc4f290e1c4477bae06/5a0d44085df4e068269db59f/5a0d44085df4e068269db59f.jpg
    • A20-OLinuXino-LIME

    Description of product

    Description
    A20-OLinuXino-LIME is a very compact (84x60)mm Linux open source hardware computer

    Features

    • Allwinner A20 dual core Cortex-A7 processor, each core typically running at 1GHz and dual-core Mali 400 GPU
    • 512MB DDR3 RAM memory
    • 4GB NAND Flash (for A20-OLinuXino-LIME-4GB)
    • SATA connector with 5V SATA power jack
    • Capable of FullHD (1080p) video playback
    • HDMI connector
    • 2 x USB High-speed host with power control and current limiter
    • USB-OTG with power control and current limiter
    • 100MBit native Ethernet
    • LiPo Battery connector with battery-charging capabilities
    • LCD connector compatible with with 4.3", 7.0", 10.1" LCD modules from Olimex
    • 160 GPIOs on four GPIO connectors
    • MicroSD card connector
    • DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
    • GPIO LED
    • Battery charge status LED
    • Power LED
    • 2KB EEPROM for MAC address storage and more
    • 3 BUTTONS with ANDROID functionality + RESET button
    • 4 mount holes
    • 5V input power supply, noise immune design
    • PCB dimensions: 84 x 60 mm
