675fd2c9c569e4002bc1a540 Bridgelux 976-BXRH-30E3000-D-83-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/675fd2cac569e4002bc1a543/bxrh-30e3000-d-83.jpg

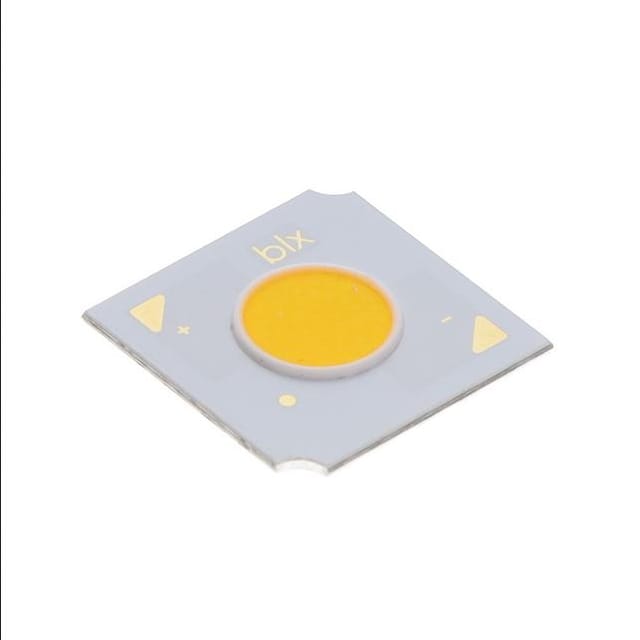

LED COB V9 HD WARM WHT SQ 3000K

Product Attributes:

Series Gen 8 V9 HD LED Array
Product Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Wavelength -
Configuration Square
Luminous Flux @ Current/Temperature 3630lm (Typ)
Current - Test 700mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 36.6V
Lumens/Watt @ Current - Test 142 lm/W
Current - Max 1.2A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Features -
Size / Dimension 19.00mm L x 19.00mm W
Height 1.63mm
Light Emitting Surface (LES) 8.80mm Dia
Lens Type Flat
TT-DKEY-976-BXRH-30E3000-D-83-ND
in stock INR 66821.76000000001
Bridgelux
1 1

Bridgelux 976-BXRH-30E3000-D-83-ND

Sku: TT-DKEY-976-BXRH-30E3000-D-83-ND
₹66,821.76


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED COB V9 HD WARM WHT SQ 3000K

Product Attributes:

Series Gen 8 V9 HD LED Array
Product Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Wavelength -
Configuration Square
Luminous Flux @ Current/Temperature 3630lm (Typ)
Current - Test 700mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 36.6V
Lumens/Watt @ Current - Test 142 lm/W
Current - Max 1.2A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Features -
Size / Dimension 19.00mm L x 19.00mm W
Height 1.63mm
Light Emitting Surface (LES) 8.80mm Dia
Lens Type Flat
