Description

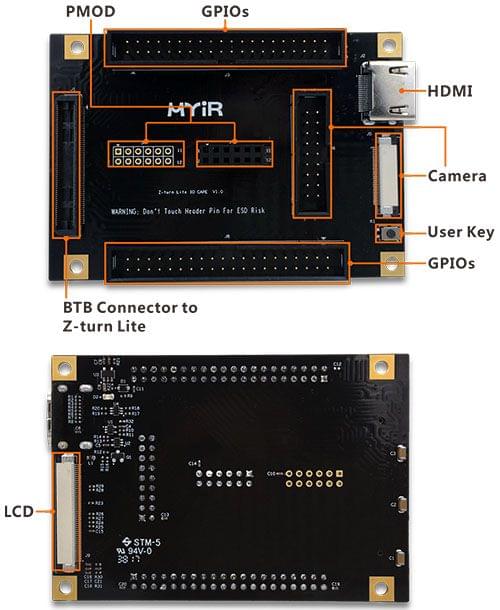

The Z-turn Lite IO Cape is an IO extension board designed specially for Xilinx Zynq-7007S or Zynq-7010 SoC based Single Board Computer Z-turn Lite which is an ultra-cost-effective lite version of MYIR’s Z-turn board. User can bring out many peripherals and signals like HDMI, Camera, LCD and GPIOs to help you explore more functions from the Z-turn Lite.
Specification:
| Item | Description |
| I/O |
Two 2.54mm pitch 2 x 20-pin Expansion connectors for I/O Function (J3 & J8) J8 is reused with LCD (J9) |
| LCD / Touch screen | One 0.5mm pitch 50-pin LCD connector (on the rear of the board) Can connect with MYIR's 7-inch capacitive LCD Module |
| Camera | One Camera interface through 30-pin FPC connector (J3) or 2.54mm pitch 2 x 9-pin connector (J6) |
| Pmod | Two Pmod interfaces, can be used for connecting with some common Pmod modules (J7 is soldered with 2.54mm pitch 2 x 6-pin female connector and J4 is not soldered with connector) |
| HDMI | One HDMI interface (supports 720p resolution currently, 1080p later) We offer reference design for HDMI and LCD display functions without limitation for its. The IP cores in the design are provided by Xilinx. MYIR will provide Vivado project and SDK testing programs. |
| Dimensions | 91mm x 63mm |
| Power input | 5V, 3.3V |
Z-turn Lite connected with Z-turn Lite IO Cape
Dimensions of Z-turn Lite IO Cape
Products Supporting List
|
NO |
Item |
Part NO |
Remark |
|
1 |
Z-turn Lite |
MYS-7Z007S-C-S MYS-7Z010-L-C-S |
|
|
2 |
Z-turn Lite Kit |
MYS-7Z007S-C MYS-7Z010-L-C |
|
|
3 |
MY-LCD70TP-C 7-inch LCD Module |
MY-TFT070CV2 |
Supports through Z-turn Lite IO Cape |
- Home
- FPGA HARDWARE
- Z-turn Lite IO Cape
Z-turn Lite IO Cape
SIZE GUIDE
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b98cfb134fc9b1269e0a349/images/5b98cfb134fc9b1269e0a34a/5b98cf6f8e262e11ddaa542c/5b98cf6f8e262e11ddaa542c.jpg
Description of product
Description
The Z-turn Lite IO Cape is an IO extension board designed specially for Xilinx Zynq-7007S or Zynq-7010 SoC based Single Board Computer Z-turn Lite which is an ultra-cost-effective lite version of MYIR’s Z-turn board. User can bring out many peripherals and signals like HDMI, Camera, LCD and GPIOs to help you explore more functions from the Z-turn Lite.
Specification:
| Item | Description |
| I/O |
Two 2.54mm pitch 2 x 20-pin Expansion connectors for I/O Function (J3 & J8) J8 is reused with LCD (J9) |
| LCD / Touch screen | One 0.5mm pitch 50-pin LCD connector (on the rear of the board) Can connect with MYIR's 7-inch capacitive LCD Module |
| Camera | One Camera interface through 30-pin FPC connector (J3) or 2.54mm pitch 2 x 9-pin connector (J6) |
| Pmod | Two Pmod interfaces, can be used for connecting with some common Pmod modules (J7 is soldered with 2.54mm pitch 2 x 6-pin female connector and J4 is not soldered with connector) |
| HDMI | One HDMI interface (supports 720p resolution currently, 1080p later) We offer reference design for HDMI and LCD display functions without limitation for its. The IP cores in the design are provided by Xilinx. MYIR will provide Vivado project and SDK testing programs. |
| Dimensions | 91mm x 63mm |
| Power input | 5V, 3.3V |
Z-turn Lite connected with Z-turn Lite IO Cape
Dimensions of Z-turn Lite IO Cape
Products Supporting List
|
NO |
Item |
Part NO |
Remark |
|
1 |
Z-turn Lite |
MYS-7Z007S-C-S MYS-7Z010-L-C-S |
|
|
2 |
Z-turn Lite Kit |
MYS-7Z007S-C MYS-7Z010-L-C |
|
|
3 |
MY-LCD70TP-C 7-inch LCD Module |
MY-TFT070CV2 |
Supports through Z-turn Lite IO Cape |
