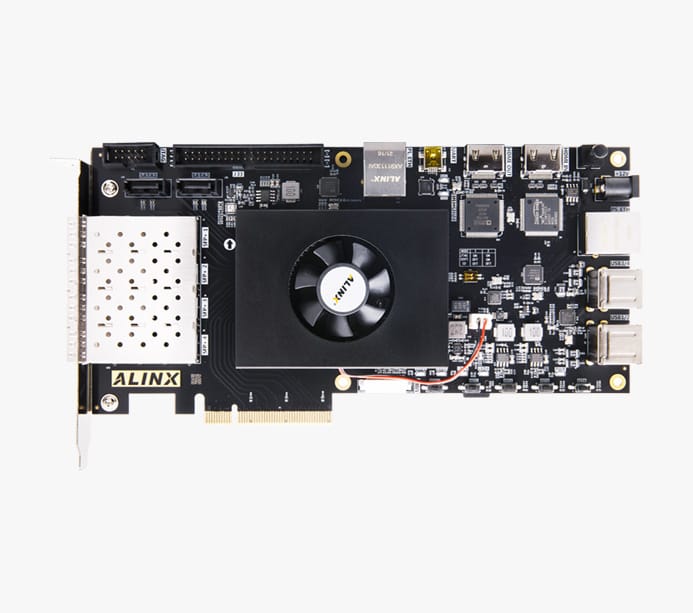

PCIe 2.0, SFP x4, Gigabit x2, 8GB eMMC, 2GB DDR3, HDMI Input / Output, GTX

Core Board Parameters

FPGA Board AX7Z100

FPGA Chip XC7Z100-2FFG900I

Kernel Dual-Core ARM Cortex-A9 Main Frequency 800MHz

PL -end RAM 1GB DDR3, Data Rate 1600Mbps

PS -end RAM 1GB DDR3, Data Rate 1066Mbps

Speed Grades -2

Chip Level Industrial Grade

Working Temperature -40°C~85°C

Logic Cells 444K

Look Up Tables (LUTs) 277400

CLB Flip-Flops 554800

Multiplier 2020

Transceivers 16-Channels, Support PCIE Gen2 x8

Block RAM 25.6Mbit

MIO 37

PL IO 162

Voltage Adjustable IO 96

LVDS 48 Pairs

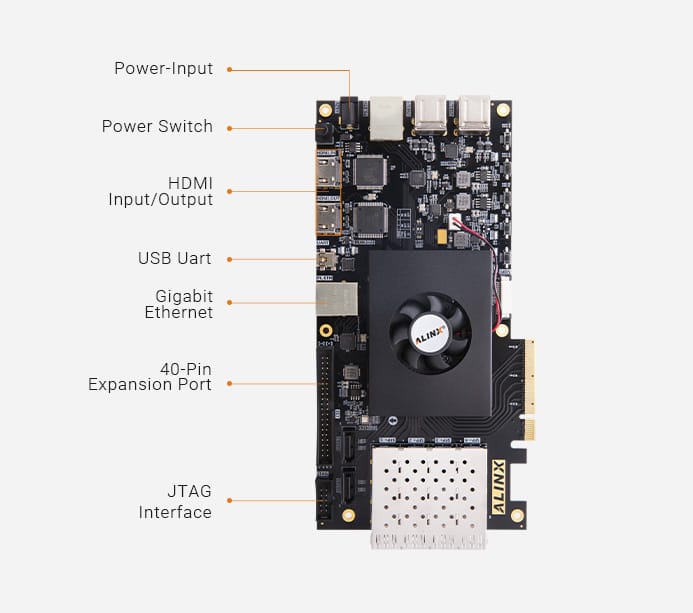

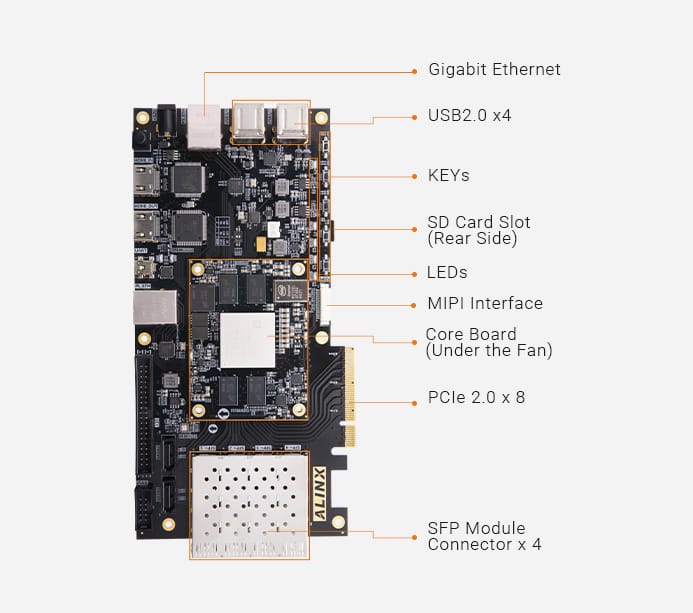

Interface and Function

DDR3 32bit Bus, Data Rate 1066Mbps

QSPI Flash 512Mbit QSPI FLASH, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as a Large-Capacity Storage Device in the ZYNQ System

Transceivers 16GTX, Each up to 6.25Gb/s, Used for SFP and PCIe Data Communication

SFP Interface 4-way High-Speed SFP Interface, the Receiving and Transmitting Speed of each Channel is up to 10.3125Gb/s

PCIe 2.0PCIe 2.0 x8 Data Transmission Interface Single Channel Communication Rate up to 5GBaud

Ethernet Interface Two 10 / 100M / 1000M Ethernet RJ-45 Interfaces for Data Exchange

JTAG Standard JTAG Port for Debug and Download of FPGA Program

HDMI HDMI Video Input and Output Interface, up to 1080P@60Hz Support 3D Output and Data Input in Different Formats

USB 2.0 x4 Used for Connect USB Peripherals such as Mouse, Keyboard.

USB Uart Used for Serial Communication with PC or External Devices

Crystal Oscillator 33.333Mhz Provide Stable Clock Source for the PS System
200Mhz Provide DDR Reference Clock for the PL Logic
125Mhz Provide Reference Clock for the GTX Transceiver

Micro SD Card Slot SD TF Card to Store Operating System Image and File System

LED 9 LEDs lights, 2 LEDs in the Core Board, 7 LEDs in the Carrier Board.

KEYs 5 Keys and 1 Reset Key, 4 PL User Keys
