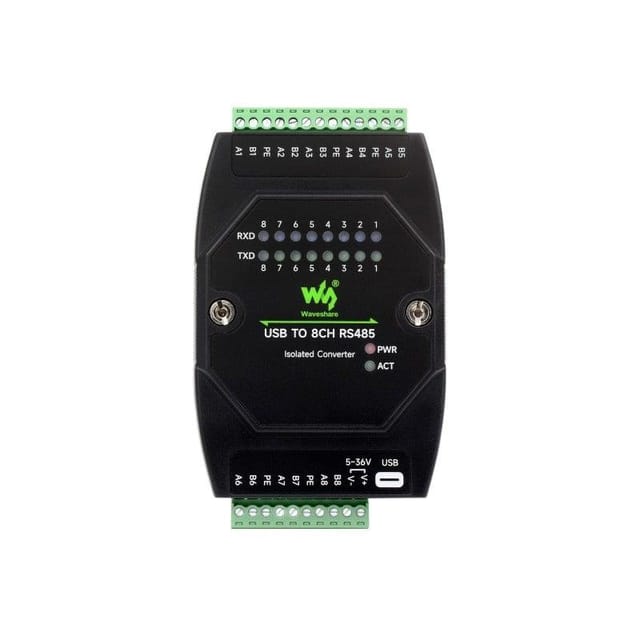

The USB TO 8CH RS485 Industrial Grade Isolated Converter is designed for seamless communication between USB interfaces and multiple RS485 industrial serial devices. With its Tenet Technetronicsst features and protective mechanisms, this converter is ideal for expanding communication networks in industrial environments.

Features:

1. USB to 8CH RS485 Support:Facilitates expansion of multiple RS485 industrial serial devices.
2. Power Supply Options:Direct power via Type-C port.
3. Auxiliary power input with 5V–36V DC wide voltage screw terminal.
4. Power Supply Isolation:Onboard unibody isolation provides stable voltage.
5. Digital Isolation:High reliability and strong anti-interference with low power consumption.
6. Surge Protection:Equipped with TVS (Transient Voltage Suppressor) for lightning and electrostatic protection.
7. Self-Recovery Fuse:Ensures stable current/voltage outputs with over-current/over-voltage protection.
8. Configurable Terminal Resistor:Built-in 120R resistor on RS485 ports, configurable via jumper.
9. LED Indicators:Displays power, device configuration, and transceiver status.
10. Rail-Mount Design:Stackable for easy installation and improved safety.

Specification:

1. Product Type: Industrial grade isolated USB to RS485 converter
2. Host Port: USB
3. Device Port: RS485
4. USB Operating Voltage: 5V
5. Connector Type: USB-C
6. Protection: 200mA self-recovery fuse; isolated output
7. Isolated RS485 Connector: Screw terminal
8. Direction Control: Hardware automatic control

Package include:

1 x USB TO 8CH RS485

1 x USB-A male to USB-C male cable ~1m

1 x Screwdriver
