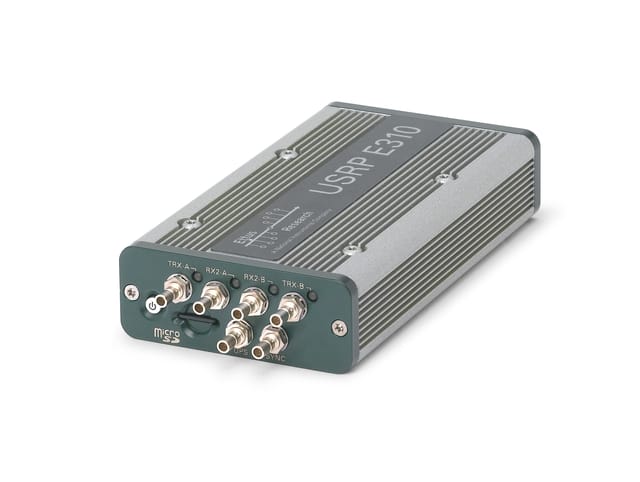

The USRP E310 offers a portable stand-alone software defined radio platform designed for field deployment. The flexible 2×2 MIMO AD9361 transceiver from Analog Devices provides up to 56 MHz of instantaneous bandwidth and spans frequencies from 70 MHz – 6 GHz to cover multiple bands of interest. RF filter banks in both the transmitter and receiver front-end enhance selectivity.

The baseband processor uses the Xilinx Zynq 7020 SoC to deliver FPGA accelerated computations combined with stand-alone operation enabled by a dual-core ARM CPU. The USRP E310 includes a rich set of peripherals such as an integrated GPS receiver for position awareness and time synchronization, as well as two host USB ports for extending storage, I/O, and communication options with off-the-shelf devices. Users can rapidly prototype and deploy designs for mobile and embedded applications with tight size, weight, and power requirements.

The USRP Embedded Series platform uses the OpenEmbedded framework to create custom Linux distributions tailored to application specific needs. The default operating system is pre-installed with the UHD software API and a variety of third party development tools such as GNU Radio. Support for the RFNoC FPGA development framework enables deterministic computations for real-time and wideband signal processing.

Features

• Wide frequency range: 70 MHz – 6 GHz

• Up to 56 MHz of instantaneous bandwidth

• 2×2 MIMO transceiver

• RX, TX filter banks

• Xilinx Zynq 7020 SoC: 7 Series FPGA with ARM Cortex A9 866 MHz dual-core processor

• Up to 10 MS/s sample data transfer rate to ARM processor

• Synchronization with PPS time reference

• Integrated GPS receiver

• 9-axis inertial measurement unit

• Rich set of peripherals such as host USB and 1 Gigabit Ethernet

• 133 x 68.2 x 26.4 mm form factor

• OpenEmbedded build framework

• USRP Hardware Driver™ (UHD) open-source software API version 3.8.0 or later

• RF Network on Chip (RFNoC™) FPGA development framework

• GNU Radio support maintained by Ettus Research™ through GR-UHD, an interface to UHD distributed by GNU Radio

• The audio jack feature has been discontinued on the E310

Datasheet

Additional Resources

• Getting Started Guide
• User Manual
• Dimensional Drawings
• AD9361 Product Page
• Xilinx Zynq Product Page
• InvenSense MPU-9150 Product Page

Included in This Kit:

• USRP E310
• Power supply
• 2x SMB-to-SMA adapter
• 1 Gigabit Ethernet cable
• USB2-to-microUSB cable
• Imaged microSD card
• Getting started guide
