USB2514B-AEZC-MICROCHIP-USB Interface, USB Hub Controller, USB 2.0, 3 V, 3.6 V, QFN, 36 Pins.The USB2514B-AEZC is a versatile and power-efficient USB 2.0 hub Controller IC. Leveraging Microchip’s innovative MultiTRAK™ technology that delivers industry-leading data throughput in mixed-speed USB environments, the USB2514B-AEZC is an USB port expansion solution for applications that demand ultra low power and a small footprint without compromising on performance. Well-suited for consumer and mobile applications, all members of the USB2514B-AEZC family are available in a space-saving package. The common 36-pin package shared among the 2/3/4 port hub controller measures only 6×6 mm and provides an ultra small footprint for space-constrained designs while allowing scalable port expansion from two to four ports.

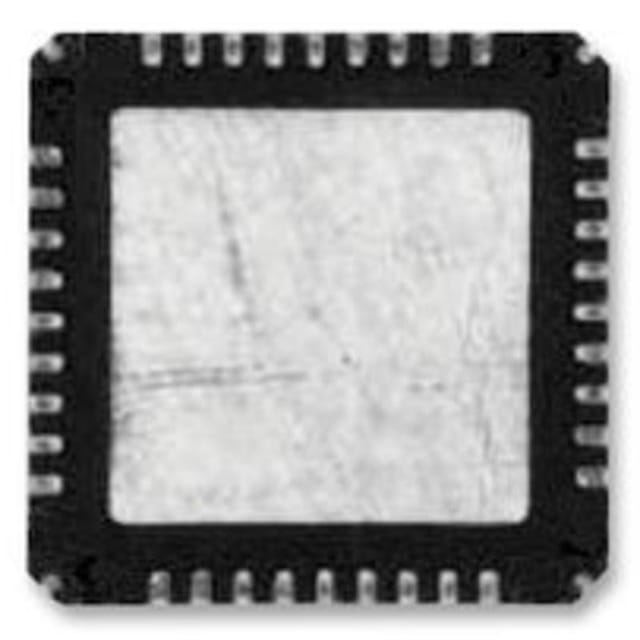

Note: Images for reference only.

Specifications:

USB IC Type:: USB Hub Controller
USB Standard:: USB 2.0
Supply Voltage Min:: 3V
Supply Voltage Max:: 3.6V
IC Case / Package:: QFN
No. of Pins:: 36Pins
Data Rate:: 480Mbps
No. of Ports:: 4Ports
Operating Temperature Min:: –
Operating Temperature Max:: 85°C
Product Range:: USB251xB/xBi
Qualification:: –
MSL:: –

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x USB2514B-AEZC-MICROCHIP-USB Interface, USB Hub Controller, USB 2.0, 3 V, 3.6 V, QFN, 36 Pins
