TPS75003RHLR-TEXAS INSTRUMENTS-Power Management IC for Powering FPGAs and DSPs, 6.5V, VQFN-20.The TPS75003RHLR is a complete Power Management Solution for FPGA, DSP and other multi-supply applications. The device has been tested with and meets all of the Xilinx Spartan-3, Spartan-3E and Spartan-3L start-up profile requirements, including monotonic voltage ramp and minimum voltage rail rise time. Independent enables for each output allow sequencing to minimize demand on the power supply at start-up. Soft-start on each supply limits inrush current during start-up. Two integrated buck controllers allow efficient, cost-effective voltage conversion for both low and high current supplies such as core and I/O. A 300mA LDO is integrated to provide an auxiliary rail such as VCCAUX on the Xilinx Spartan-3 FPGA. All three supply voltages are offered in user-programmable options for maximum flexibility.

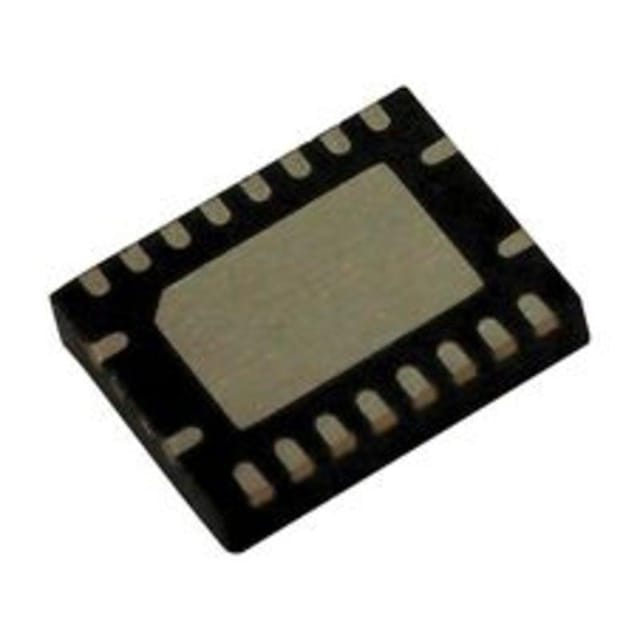

Note: Images for reference only.

Specifications:

IC Type:: Buck Regulator, LDO
Supply Voltage:: 6.5V
No. of Step-Down DC – DC Converters:: 2
No. of LDO Regulators:: 1
No. of Regulated Outputs:: 3
IC Case / Package:: VQFN
No. of Pins:: 20Pins
Operating Temperature Min:: -40°C
Operating Temperature Max:: 85°C

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x TPS75003RHLR-TEXAS INSTRUMENTS-Power Management IC for Powering FPGAs and DSPs, 6.5V, VQFN-20
