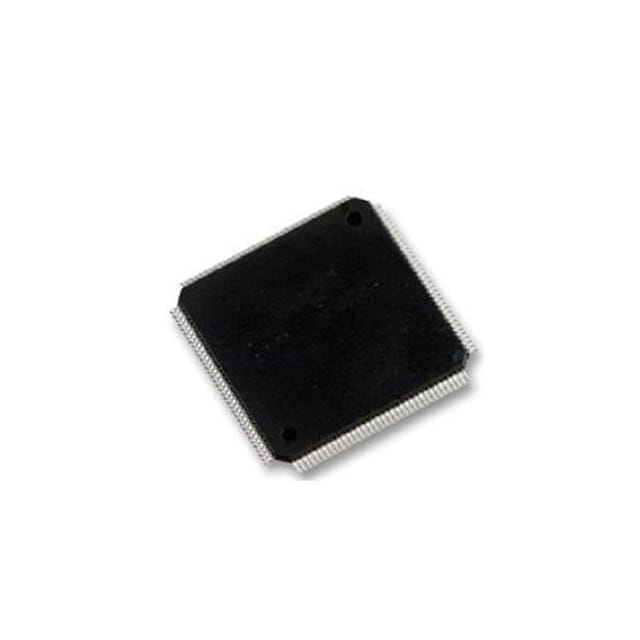

673d8e91365ec2003e77d6a7 STM32F429ZIT6-STMICROELECTRONICS-ARM MCU, High Performance, STM32 Family STM32F4 Series Microcontrollers, ARM Cortex-M4, 32 bit https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/673d8e93365ec2003e77d6a9/ge144lqfp05-40-1.jpg
STM32F429ZIT6 is a high-performance advanced line, ART accelerator, Chrom-ART accelerator, FMC with SDRAM, TFT, 32b Arm® Cortex®-M4 MCU+FPU. The Cortex-M4 core features a floating point unit (FPU) single precision which supports all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. It offers three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, and two general-purpose 32-bit timers. It also features standard and advanced communication interfaces. Typical applications are motor drive and application control, medical equipment, industrial applications: PLC, inverters, circuit breakers, printers, and scanners, alarm systems, video intercom, and HVAC, home audio appliances.
  • LCD parallel interface, 8080/6800 modes, internal 32KHz RC with calibration
  • VBAT supply for RTC, 20×32 bit backup registers + optional 4KB backup SRAM
  • Internal 16MHz factory-trimmed RC (1% accuracy), POR, PDR, PVD and BOR
  • Debug mode: SWD and JTAG interfaces, Cortex-M4 Trace Macrocell™
  • 8- to 14-bit parallel camera interface up to 54Mbytes/s
  • True random number generator, CRC calculation unit
  • RTC: subsecond accuracy, hardware calendar, 96-bit unique ID
  • Operating voltage range from 1.8 to 3.6V
  • LQFP package
  • Industrial temperature range from -40 to 85°C

Specifications:

  1. Product Range: STM32 Family STM32F4 Series Microcontrollers
  2. Device Core: ARM Cortex-M4
  3. Data Bus Width: 32 bit
  4. Operating Frequency Max: 180MHz
  5. Program Memory Size: 2MB
  6. No. of Pins: 144Pins
  7. IC Case / Package: LQFP
  8. No. of I/O’s: 114I/O’s
  9. Interfaces: CAN, I2C, I2S, SPI, UART, USART, USB
  10. RAM Memory Size: 256KB
  11. ADC Channels: 24Channels
  12. ADC Resolution: 12Bi
  13. Supply Voltage Min: 1.8V
  14. Supply Voltage Max: 3.6V
  15. Operating Temperature Min: -40°C
  16. Operating Temperature Max: 85°C
  17. IC Mounting: Surface Mount
  18. MCU Family: STM32
  19. MCU Series: STM32F4

Package Includes:

1 x STM32F429ZIT6-STMICROELECTRONICS-ARM MCU, High Performance, STM32 Family STM32F4 Series Microcontrollers, ARM Cortex-M4, 32 bit

TT-RB-R110952
in stockINR 854
1 1

STM32F429ZIT6-STMICROELECTRONICS-ARM MCU, High Performance, STM32 Family STM32F4 Series Microcontrollers, ARM Cortex-M4, 32 bit

Sku: TT-RB-R110952
Be the first to review this product
₹854
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STM32F429ZIT6 is a high-performance advanced line, ART accelerator, Chrom-ART accelerator, FMC with SDRAM, TFT, 32b Arm® Cortex®-M4 MCU+FPU. The Cortex-M4 core features a floating point unit (FPU) single precision which supports all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. It offers three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, and two general-purpose 32-bit timers. It also features standard and advanced communication interfaces. Typical applications are motor drive and application control, medical equipment, industrial applications: PLC, inverters, circuit breakers, printers, and scanners, alarm systems, video intercom, and HVAC, home audio appliances.
  • LCD parallel interface, 8080/6800 modes, internal 32KHz RC with calibration
  • VBAT supply for RTC, 20×32 bit backup registers + optional 4KB backup SRAM
  • Internal 16MHz factory-trimmed RC (1% accuracy), POR, PDR, PVD and BOR
  • Debug mode: SWD and JTAG interfaces, Cortex-M4 Trace Macrocell™
  • 8- to 14-bit parallel camera interface up to 54Mbytes/s
  • True random number generator, CRC calculation unit
  • RTC: subsecond accuracy, hardware calendar, 96-bit unique ID
  • Operating voltage range from 1.8 to 3.6V
  • LQFP package
  • Industrial temperature range from -40 to 85°C

Specifications:

  1. Product Range: STM32 Family STM32F4 Series Microcontrollers
  2. Device Core: ARM Cortex-M4
  3. Data Bus Width: 32 bit
  4. Operating Frequency Max: 180MHz
  5. Program Memory Size: 2MB
  6. No. of Pins: 144Pins
  7. IC Case / Package: LQFP
  8. No. of I/O’s: 114I/O’s
  9. Interfaces: CAN, I2C, I2S, SPI, UART, USART, USB
  10. RAM Memory Size: 256KB
  11. ADC Channels: 24Channels
  12. ADC Resolution: 12Bi
  13. Supply Voltage Min: 1.8V
  14. Supply Voltage Max: 3.6V
  15. Operating Temperature Min: -40°C
  16. Operating Temperature Max: 85°C
  17. IC Mounting: Surface Mount
  18. MCU Family: STM32
  19. MCU Series: STM32F4

Package Includes:

1 x STM32F429ZIT6-STMICROELECTRONICS-ARM MCU, High Performance, STM32 Family STM32F4 Series Microcontrollers, ARM Cortex-M4, 32 bit
