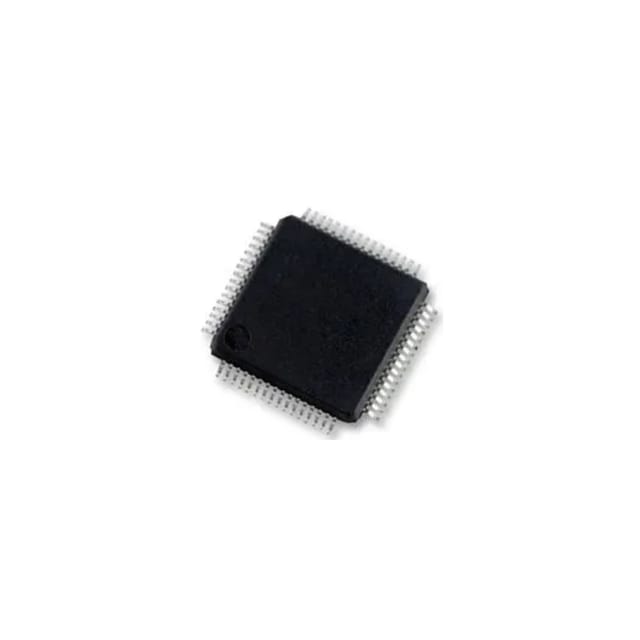

ARM®-Cortex®-M4 32bit MCU + FPU. It supports up to 17 communication interfaces up to 4x I2C interfaces (SMBus/PMBus), Up to 4 USARTs (2 x 12.5Mbit/s, 2 x 6.25Mbit/s), ISO 7816 interface, LIN, IrDA, modem control), up to 5 SPI/I2Ss (up to 50Mbit/s, SPI or I2S audio protocol), out of which 2 muxed full-duplex I2S interfaces, SDIO interface (SD/MMC/eMMC), advanced connectivity: USB 2.0 full-speed device/host/OTG controller with PHY, 2x CAN (2.0B Active).

Specifications:

IC Case / Package: LQFP
Operating Temperature Min: -40°C
No. of Pins: 64Pins
Product Range: ARM Cortex-M4 Microcontrollers
IC Mounting: Surface Mount
Operating Temperature Max: 85°C
Supply Voltage Min: 1.7V
Supply Voltage Max: 3.6V
Operating Frequency Max: 100MHz
Program Memory Size: 1MB
Device Core: ARM Cortex-M4
MCU Series: STM32F4

Package Includes:

1 x STM32F412RGT6-STMICROELECTRONICS-STM32F412RGT6-ARM MCU, ARM Cortex-M4 Microcontrollers, ARM Cortex-M4, 32 bit, 100 MHz, 1 MB, 64 Pins
