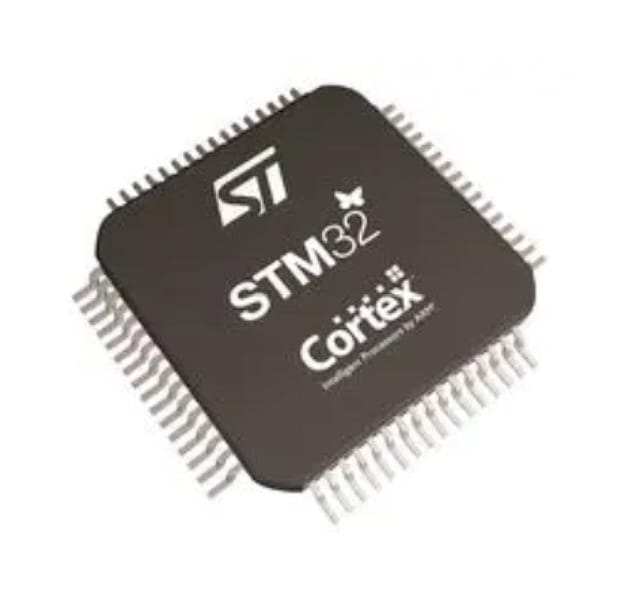

The STM32F401RCT6 is a 32-bit 256kB high-performance access line Microcontroller Unit features a floating point unit single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit which enhances application security. It incorporates high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. This offers one 12-bit ADC, a low-power RTC, six general-purpose 16-bit timers including one PWM timer for motor control and two general-purpose 32-bit timers and also features standard and advanced communication interfaces.

Features:

1. Clock, reset and supply management – POR, PDR, PVD and BOR
2. General-purpose DMA – 16-stream DMA controllers with FIFOs and burst support
3. Debug mode – Serial wire debug (SWD) and JTAG interfaces
4. Cortex-M4 embedded trace Macrocell™
5. CRC calculation unit
6. 96-bit Unique ID
7. RTC – sub second accuracy, hardware calendar

Package Includes:

1 x STM32F401RCT6-STMICROELECTRONICS-ARM MCU, Dynamic Efficiency Line, STM32 Family STM32F4 Series Microcontrollers, ARM Cortex-M4
