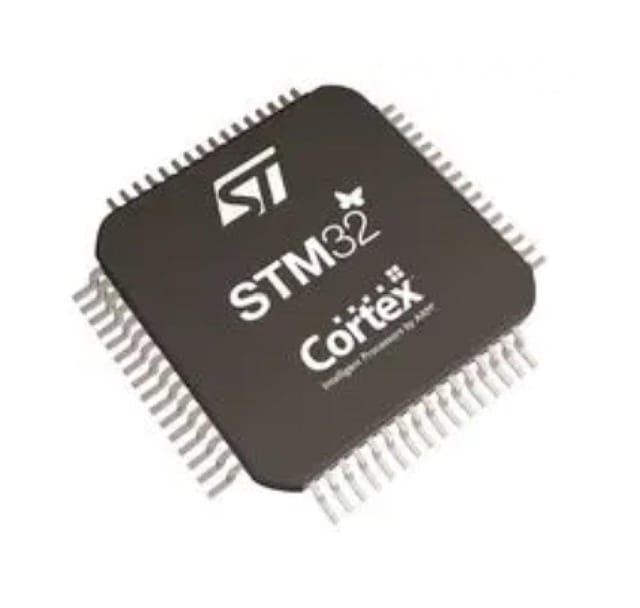

The STM32F103RCT6 is a high density performance line, ARM Cortex-M3 32bit microcontroller in 64 pin LQFP package. It incorporates high performance RISC core with 72MHz operating frequency, high speed embedded memories, extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103RCT6 features 12bit ADC, timers, PWM timer, standard and advanced communication interfaces. A comprehensive set of power saving mode allows design of low power applications.

Features:

• Operating voltage range from 2V to 3.6V
• 256Kbytes of flash memory
• 48Kbytes of SRAM
• CRC calculation unit, 96bit unique ID
• Three 12bit, 1μs A/D converter (up to 16 channels) and two 12bit DAC 92 channel
• Four general purpose, two advanced control and two basic timers
• 51 fast I/O ports
• Serial wire debug (SWD) and JTAG interfaces
• Three SPI, two I2C, five USART, one USB, one SDIO and one CAN interfaces
• Ambient operating temperature range from -40°C to 85°C

Package Includes:

1 x STM32F103RCT6-STMICROELECTRONICS-ARM MCU, Motor Control, STM32 Family STM32F1 Series Microcontrollers, ARM Cortex-M3, 32 bit, 72 MHz
