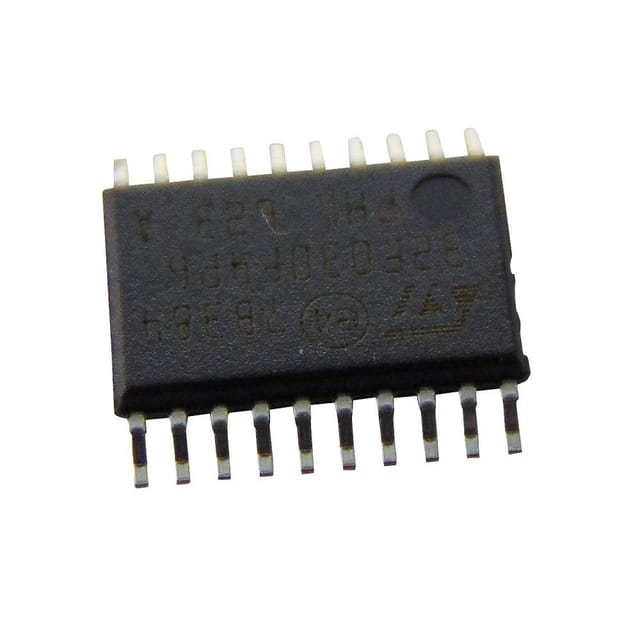

The STM32F030F4P6 by STMicroelectronics is a remarkable ARM MCU, part of the STM32F0 Series. It boasts a high-performance 32-bit architecture with a powerful ARM Cortex-M0 core, offering an operating frequency of up to 48 MHz. This microcontroller is a valuable addition to the STM32 Family, specifically designed as a Value Line solution for a wide range of applications. Its 32-bit processing capabilities make it a top choice for those seeking advanced performance and efficiency in their projects. Whether you’re working on embedded systems, IoT applications, or other projects, the STM32F030F4P6 is a reliable choice for your microcontroller needs.

Note: For more technical details go through Datasheet in the attachment section.

Features:

1. Microcontroller with ARM® 32bit Cortex™-M0 CPU, frequency up to 48MHz in 20 pin TSSOP package
2. CRC calculation unit, 16Kb flash, 4KB SRAM
3. 2.4V to 3.6V voltage range, power-on/power-down reset (POR/PDR)
4. 4 to 32MHz crystal oscillator, internal 40KHz RC oscillator
5. 15 GPIO, 5-channel DMA controller
6. One 11-channel, 12bit synchronized ADC
7. 1 (16bit) advanced control and 4 (16bit) general-purpose timers
8. Calendar RTC with alarm and periodic wakeup from stop/standby
9. SPI, I2C, and USART communication interfaces
10. Serial wire debug (SWD)

Package Includes:

1 x STM32F030F4P6 STMICROELECTRONICS ARM MCU, Value Line, STM32 Family STM32F0 Series Microcontrollers, ARM Cortex-M0, 32 bit, 48 MHz
