Description:

SIM5320 is a quad-band GSM/GPRS/EDGE and dual-band UMTS/HSDPA that works on frequencies of GSM 850MHz, EGSM 900 MHz, DCS 1800MHz, PCS 1900MHz and WCDMA2100/900MHz, 2100/850 MHZ or 1900/850MHz. Users can choose the module based on the wireless network configuration.

Features:

• Quad-band 850MHz GSM, 900MHz EGSM, 1800MHz DCS, 1900MHz PCs - connect onto any global GSM network with any 2G SIM
• This is the European Version - with dual-band UMTS/HSDPA 900/2100MHz WCDMA + HSDPA
• Fully-integrated GPS (Qualcomm PM8015 GPS) that can be controlled and query over the same serial port
• Send and receive SMS messages
• Send and receive GPRS data (TCP/IP, HTTP, etc.)
• AT command interface can be used with 300, 600, 1200, 4800, 9600, 19200, 38400, 57600, 115200, 230K, 461K, 961K, 3.2M, 3.7M and 4.0Mbps

GPS specifications:

• 16 acquisition channels
• GPS L1 C/A code
• Sensitivity: Tracking: -157 dBm Cold starts: -144 dBm
• Time-To-First-Fix: Cold starts: 100s (typ.) Hot starts: 1s (typ.)
• Accuracy: approx 2.5 meters

Package List:

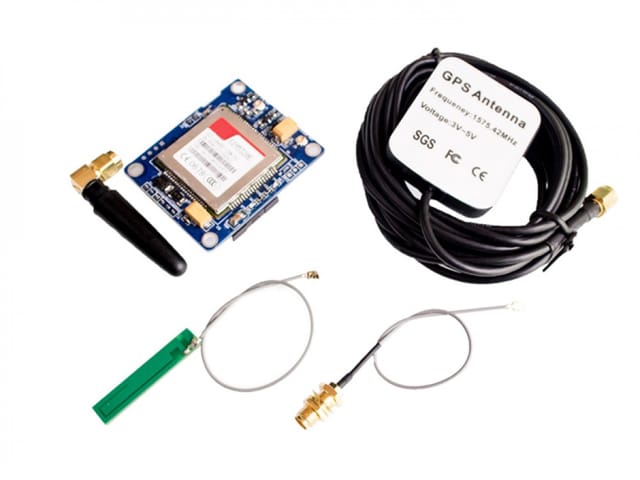

• 1 x SIM5320E 3G Cellular Breakout - European version

Documents:

• Hardware Design
• Specification
• AT command
• GPRS / TCP/IP App note
