Description

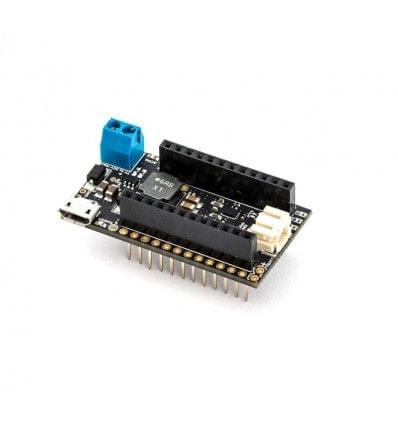

The Power Shield is the best way to—you guessed it—provide power to your mobile Particle projects. Based around the MCP73871 battery management controller, this shield allows you to simultaneously power a Photon and charge a connected Li-Ion or Li-Po battery. You'll also be able to monitor battery levels using the Photon itself, which makes the Power Shield the best way to untether your wireless project.
Besides the on-board USB port, you can also use an external DC power supply or solar-cell to charge the battery.
This shield ships with a 3.7V, 400mAh Li-Po battery and headers.
Designed for use with the Photon, backwards compatible with the Core.
Specifications
-
Operating voltage: USB or External DC of 7 to 20V
-
Current consumption: 500mA max (USB) & 1.2A max (other DC sources)
-
Dimensions: 1" x 1.84"
Technical details
| Dimensions | 0mm x0mm x0mm |
| Weight | G.W 81g |
| Battery | Exclude |
- Home
- DEVELOPMENT BOARDS AND IC's
- PARTICLE
- Particle Power Shield with Headers
Particle Power Shield with Headers
SIZE GUIDE
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d71efd3bce5b172289eeafc/images/5d71efd3bce5b172289eeafd/5d71ef41762fd97223c8c231/5d71ef41762fd97223c8c231.jpg
Description of product
Description
The Power Shield is the best way to—you guessed it—provide power to your mobile Particle projects. Based around the MCP73871 battery management controller, this shield allows you to simultaneously power a Photon and charge a connected Li-Ion or Li-Po battery. You'll also be able to monitor battery levels using the Photon itself, which makes the Power Shield the best way to untether your wireless project.
Besides the on-board USB port, you can also use an external DC power supply or solar-cell to charge the battery.
This shield ships with a 3.7V, 400mAh Li-Po battery and headers.
Designed for use with the Photon, backwards compatible with the Core.
Specifications
-
Operating voltage: USB or External DC of 7 to 20V
-
Current consumption: 500mA max (USB) & 1.2A max (other DC sources)
-
Dimensions: 1" x 1.84"
Technical details
| Dimensions | 0mm x0mm x0mm |
| Weight | G.W 81g |
| Battery | Exclude |
