Description:

The nRF52832 is Nordic Semiconductor’s latest multiprotocol radio System on Chip (SoC). It’s a half microcontroller, with a list of features including 32 configurable I/O pins, SPI, I2C, UART, PWM, ADC’s, 512kB flash, and 64kB RAM. And it’s half 2.4GHz multiprotocol radio, supporting Bluetooth Low Energy (BLE), ANT, and Nordic's proprietary 2.4GHz ultra-low-power wireless communication – it even features on-chip NFC tag support.

This nRF52832 Breakout provides easy access to all of the chip’s features. It breaks out all of the nRF52’s I/O pins, provides a 32.768kHz RTC crystal, a trace antenna to send and receive those 2.4GHz transmissions. Plus, to make the chip as easy-to-flash as possible.

Nordic’s nRF52832 is an SoC that combines an ARM Cortex-M4F microprocessor with a 2.4GHz multiprotocol radio. In addition to providing access to all of the chip’s I/O pins, the breakout board includes a handful of external components. The nRF52832 can operate on a power supply between 1.7 and 3.6V...

Features:

• Bluetooth Low Energy (BLE), ANT, and proprietary 2.4GHz radio support
• 32-bit ARM Cortex-M4F Processor
• Easy access to all 32 GPIO
• SPI, I2C, UART, PWM, and ADC I/O support
• 32.768kHz RTC Crystal

Package List:

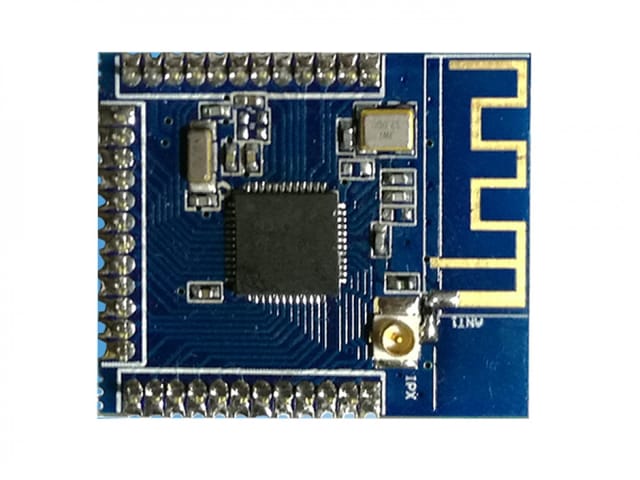

• 1 x nRF52832 BLE4.2 Module

Documents:

• Datasheet
