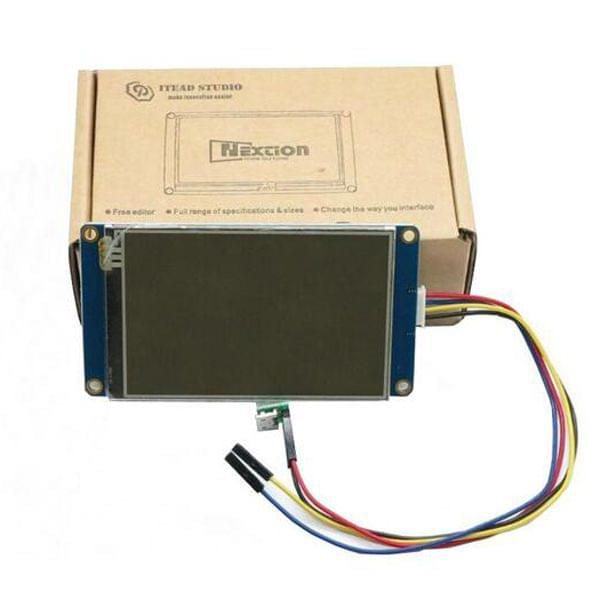

601e7080c3db331f0c3455af Nextion NX4832T035 - 3.5" HMI TFT LCD Touch Display Module https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/601e7082c3db331f0c3455d5/59f2de2a79d636a72050d45f.jpg

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.


Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

3.5" Basic Nextion NX4832T035 HMI TFT Intelligent Display Module is a powerful 3.5'' HMI, which is member of Nextion family. Features include: a 3.5" TFT 480x320 resistive touch screen display, 16M Flash, 3.5KByte RAM, 65k colors.

Package include: a Nextion 3.5'' display, a wire, a power supply test board

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image how to use it.

Features

  • 480 x 320 Resolution
  • RGB 65K true to life colours
  • TFT screen with integrated resistive touch panel
  • 4 pin TTL serial interface
  • 16M Flash memory for User Application Code and Data
  • On board micro-SD card slot for firmware upgrade
  • Visual Area: 73.44mm(L)×48.96mm(W)
  • Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
  • 5V500mA DC recommended power supply
  • 5V145mA power consumption
  • Certificates: CE/EMC, RoHS(certificates)
TT-IS- IM150918001
in stockINR 3700.48
ITEAD STUDIO
1 1
Nextion NX4832T035 - 3.5" HMI TFT LCD Touch Display Module

Nextion NX4832T035 - 3.5" HMI TFT LCD Touch Display Module

Sku: TT-IS- IM150918001
₹3,700.48


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.


Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

3.5" Basic Nextion NX4832T035 HMI TFT Intelligent Display Module is a powerful 3.5'' HMI, which is member of Nextion family. Features include: a 3.5" TFT 480x320 resistive touch screen display, 16M Flash, 3.5KByte RAM, 65k colors.

Package include: a Nextion 3.5'' display, a wire, a power supply test board

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image how to use it.

Features

  • 480 x 320 Resolution
  • RGB 65K true to life colours
  • TFT screen with integrated resistive touch panel
  • 4 pin TTL serial interface
  • 16M Flash memory for User Application Code and Data
  • On board micro-SD card slot for firmware upgrade
  • Visual Area: 73.44mm(L)×48.96mm(W)
  • Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
  • 5V500mA DC recommended power supply
  • 5V145mA power consumption
  • Certificates: CE/EMC, RoHS(certificates)
