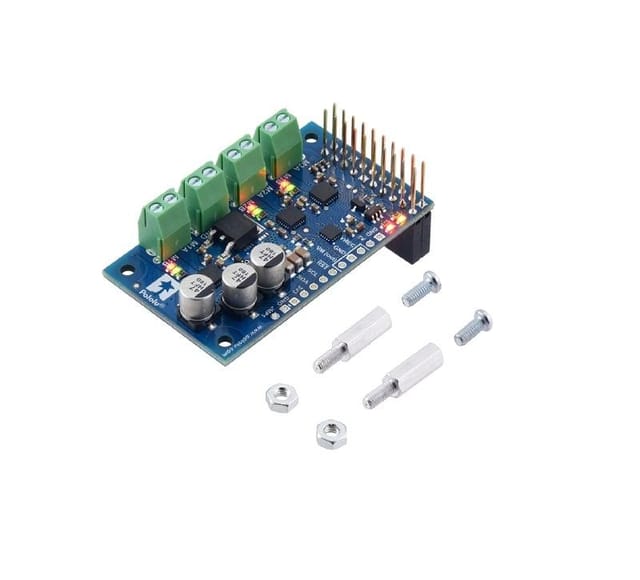

The Motoron M3H256 Triple Motor Controller is designed for Raspberry Pi, allowing independent control of up to three bidirectional brushed DC motors via an I²C interface. It operates with motor supply voltages from 4.5 V to 48V and can handle continuous output currents of 2 A per motor, peaking at 6.4 A for short durations.

The controller can be stacked to manage multiple motors, simplifying complex projects. Features include adjustable motion parameters, reverse-voltage protection, and a user-friendly Python library for easy integration. Motoron M3H256 version comes with soldered stackable headers and terminal blocks for convenient setup.

Features:

1. Motor Control: Independently control up to three bidirectional brushed DC motors.
2. Voltage Range: Supports motor supply voltages from 4.5 V to 48 V.
3. Current Capacity: Continuous output of 2 A per motor, with a peak of 6.4 A for short bursts.
4. Stackable Design: Multiple controllers can be stacked on a Raspberry Pi for expanded motor control.
5. I²C Interface: Communicates via I²C, requiring only two GPIO pins for multiple controllers.
6. Configurable Motion Parameters: Adjustable acceleration, starting speed, and direction change delay.
7. Reverse-Voltage Protection: Protects against negative voltage on the motor power supply.
8. Status LEDs: Includes indicators for motor direction and operation.
9. Python Library: Easy integration with Raspberry Pi using a comprehensive Python library.

Package include:

1 x Motoron M3H256 Triple Motor Controller for Raspberry Pi (Connectors Soldered)
