673c4344c3f14100240e5f66 MLF2012C330KT000-TDK-5mA 33uH ±10% 550mΩ 0805 Inductors (SMD) ROHS https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/673c4346c3f14100240e5f68/smd_indcutor_3.jpg

MLF2012C330KT000-TDK-5mA 33uH ±10% 550mΩ 0805 Inductors (SMD) ROHS.5mA 33uH ±10% 550mΩ 0805 Inductors (SMD) ROHS

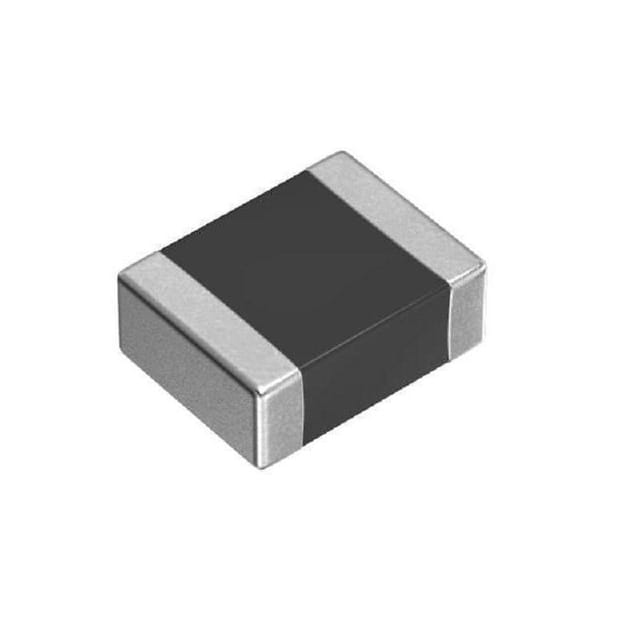

Note: Images for reference only.

Specifications:

Rated Current: 5mA
Inductance: 33uH
Tolerance: ±10%
Frequency – Self Resonant: 15MHz
Saturation Current (Isat): –
DC Resistance (DCR): 550mΩ
Ratings: –
Q @ Freq: 30@400kHz



For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x MLF2012C330KT000-TDK-5mA 33uH ±10% 550mΩ 0805 Inductors (SMD) ROHS

TT-RB-R175491
in stockINR 4
1 1

MLF2012C330KT000-TDK-5mA 33uH ±10% 550mΩ 0805 Inductors (SMD) ROHS

Sku: TT-RB-R175491
Be the first to review this product
₹4
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

MLF2012C330KT000-TDK-5mA 33uH ±10% 550mΩ 0805 Inductors (SMD) ROHS.5mA 33uH ±10% 550mΩ 0805 Inductors (SMD) ROHS

Note: Images for reference only.

Specifications:

Rated Current: 5mA
Inductance: 33uH
Tolerance: ±10%
Frequency – Self Resonant: 15MHz
Saturation Current (Isat): –
DC Resistance (DCR): 550mΩ
Ratings: –
Q @ Freq: 30@400kHz



For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x MLF2012C330KT000-TDK-5mA 33uH ±10% 550mΩ 0805 Inductors (SMD) ROHS
