MCP73831T-2DCI/OT-MICROCHIP-Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 6V input, 4.2V / 500mA charge, SOT-23-5.The MCP73831T-2DCI/OT is a miniature single-cell, fully integrated Li-ion, Li-polymer charge Management Controller for use in space limited and cost-sensitive applications. This controller employ a constant-current/constant voltage charge algorithm with selectable preconditioning and charge termination. The constant current value is set with one external resistor. This devices limit the charge current based on die temperature during high power or high ambient conditions. This thermal regulation optimizes the charge cycle time while maintaining device reliability.

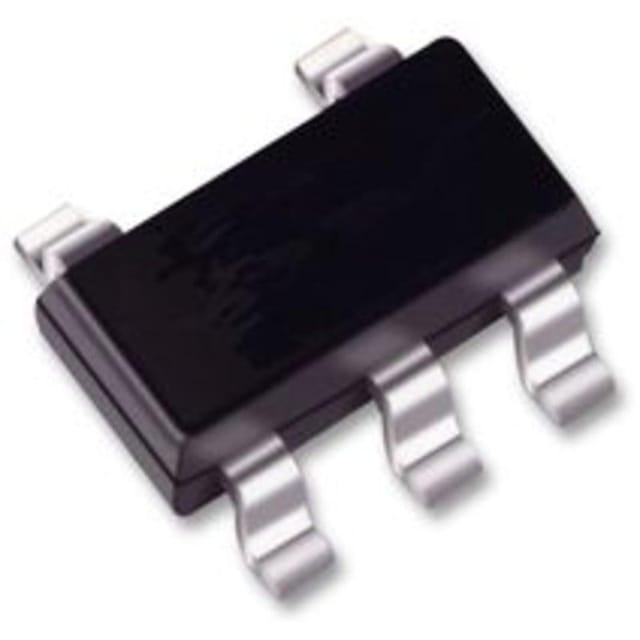

Note: Images for reference only.

Specifications:

Battery Type:: Li-Ion, Li-Pol
Input Voltage:: 6V
Battery Charge Voltage:: 4.2V
Charge Current:: 500mA
IC Case / Package:: SOT-23
No. of Pins:: 5Pins
No. of Cells:: 1Cells
Operating Temperature Min:: -40°C
Operating Temperature Max:: 85°C
IC Mounting:: Surface Mount

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x MCP73831T-2DCI/OT-MICROCHIP-Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 6V input, 4.2V / 500mA charge, SOT-23-5
