Description

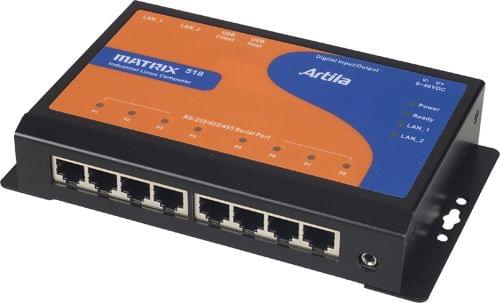

ATMEL 9G20, Linux-ready ARM Industrial Box Computer with 2 x LANs, 8 x RS-232 / 422 / 485 TTYs, 2 x USB Hosts, 21 x GPIOs and 1 x Audio Out

  • Linux 2.6.29 computing platform with file system

  • CPU: ATMEL AT91SAM9G20 w/MMU, 400MHz

  • Flash: 256MB, NAND type

  • SDRAM: 64MB

  • DataFlash: 2MB

  • microSD socket: up to 32GB

  • Failover mechanism against system crash

  • Ethernet: 2 x 10/100Mbps

  • TTY: 8 x RS-232 / 422 / 485

  • USB Host: 2 x USB 2.0 compliant

  • Power input: 9~40VDC

  • GNU C/C++ tool chain for Linux and Windows



Documents

TT-ATL-Matrix-518
in stockINR
ARTILA
1 1
Matrix-518

Matrix-518

Sku: TT-ATL-Matrix-518

Product Enquiry

Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description

ATMEL 9G20, Linux-ready ARM Industrial Box Computer with 2 x LANs, 8 x RS-232 / 422 / 485 TTYs, 2 x USB Hosts, 21 x GPIOs and 1 x Audio Out

  • Linux 2.6.29 computing platform with file system

  • CPU: ATMEL AT91SAM9G20 w/MMU, 400MHz

  • Flash: 256MB, NAND type

  • SDRAM: 64MB

  • DataFlash: 2MB

  • microSD socket: up to 32GB

  • Failover mechanism against system crash

  • Ethernet: 2 x 10/100Mbps

  • TTY: 8 x RS-232 / 422 / 485

  • USB Host: 2 x USB 2.0 compliant

  • Power input: 9~40VDC

  • GNU C/C++ tool chain for Linux and Windows
