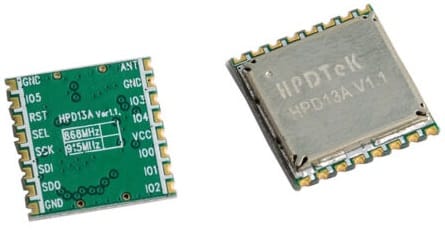

6038c14d7b1699485f28242b LORA 868MHZ SX1276 RF TRANSRECEIVER MODULE RFM95W COMPATIBLE https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/63996725aee651d64074f78a/lora-module.jpg

Description:

The  868MHz SX1276 RF transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

Using LoRa modulation technique it can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness.

LoRa also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.

These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The 868MHz SX1276 RF deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.

Features:

  • LoRa Modem.
  • Communication: SPI
  • 168 dB maximum link budget.
  • +20 dBm - 100 mW constant RF output vs. V supply.
  • +14 dBm high efficiency PA.
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -148 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm.
  • Excellent blocking immunity.
  • Low RX current of 10.3 mA, 200 nA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
  • Built-in bit synchronizer for clock recovery.
  • With sheild to eliminate noise
  • Preamble detection.
  • 127 dB Dynamic Range RSSI.
  • Automatic RF Sense and CAD with ultra-fast AFC.
  • Packet engine up to 256 bytes with CRC.
  • Modue Size:16*16mm
TT-RKI-2726
in stockINR 843
ROBOKITS
1 1
LORA 868MHZ SX1276 RF TRANSRECEIVER MODULE RFM95W COMPATIBLE

LORA 868MHZ SX1276 RF TRANSRECEIVER MODULE RFM95W COMPATIBLE

Sku: TT-RKI-2726
₹843


Sold By: tenettech
Features
  • 10-12 working days

Description of product

Description:

The  868MHz SX1276 RF transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

Using LoRa modulation technique it can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness.

LoRa also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.

These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The 868MHz SX1276 RF deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.

Features:

  • LoRa Modem.
  • Communication: SPI
  • 168 dB maximum link budget.
  • +20 dBm - 100 mW constant RF output vs. V supply.
  • +14 dBm high efficiency PA.
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -148 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm.
  • Excellent blocking immunity.
  • Low RX current of 10.3 mA, 200 nA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
  • Built-in bit synchronizer for clock recovery.
  • With sheild to eliminate noise
  • Preamble detection.
  • 127 dB Dynamic Range RSSI.
  • Automatic RF Sense and CAD with ultra-fast AFC.
  • Packet engine up to 256 bytes with CRC.
  • Modue Size:16*16mm
