L6565D-STMICROELECTRONICS-L6565D-Switched-Mode Power Supply Controller, 18V-10.3V supply, 200mA out, SOIC-8
.The L6565D is a current-mode Primary Controller IC. It is specifically designed to build offline quasi-resonant ZVS (zero voltage switching at switch turn-on) fly-back converters. Quasi-resonant operation is achieved by means of a transformer demagnetization sensing input that triggers MOSFETs turn-on. The IC includes also a disable function, an on-chip filter on current sense, an error amplifier with a precise reference voltage for primary regulation and an effective two-level over-current protection.

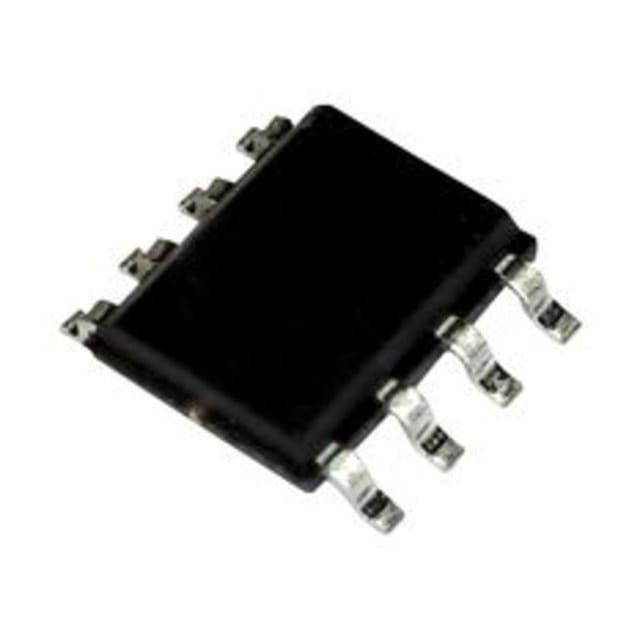

Note: Images for reference only.

Specifications:

Power Supply Controller Type:: Quasi-Resonant Controller
No. of Channels:: 1Channels
Control Mode:: Current Mode Control
Supply Voltage Min:: 10.3V
Supply Voltage Max:: 18V
IC Case / Package:: SOIC
No. of Pins:: 8Pins
IC Mounting:: Surface Mount
Topology:: Flyback
Operating Temperature Min:: -40°C
Operating Temperature Max:: 150°C

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x L6565D-STMICROELECTRONICS-L6565D-Switched-Mode Power Supply Controller, 18V-10.3V supply, 200mA out, SOIC-8
