Description:

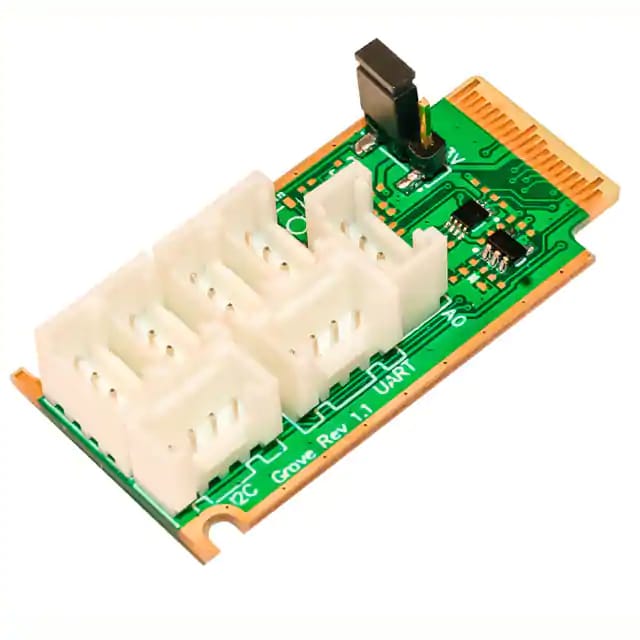

The mangOH Grove Expansion Board brings Seeed Studio Grove connectivity to the Sierra Wireless mangOH IoT platform in a small QSFP+ form factor. The Talon Grove extender offers easy integration into the mangOH and FX30 platforms and is targeted as a simple, flexible, and low-cost expansion solution. By making use of standard Grove connectors and pinout, the rich variety of Grove peripheral modules can easily be connected to mangOH platform devices. The Grove Expansion Board includes on-board voltage conversion to connect 3.3V or 5V devices to the mangOH internal 1.8V logic, and supports the full selection of I2C, UART, digital I/O and analog interfaces.

Features:

• On-board voltage level translation to connect 3.3V
  or 5.0V Grove modules to mangOH internal 1.8V
  logic
• 3.3V or 5.0V power delivery to Grove modules
• Selectable voltage: can choose 3.3V or 5.0V
  interface and power delivery with single jumper
• 7 Standard Grove interface connections:
  • 4 Digital
  • 1 Analog
  • 1 UART
  • 1 I2C
• Buffered analog and I2C interfaces

Datasheets: EXPANDER CARD MANGOH AND FX30Pdf
