Description

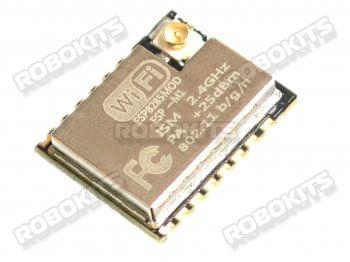

The ESP-M1 module core processor uses the cost-effective chip ESP8285. The chip integrates an enhanced version of Tensilica's L106 Diamond Series 32-bit core processor in a smaller package with on-chip SRAM. ESP8285 has a complete of Wi-Fi mesh network capabilities, both to standalone application , or as a slave mounted on another host MCU running . When the ESP8285 hosts an application, it can be launched directly from external Flash . The built-in cache helps improve system performance and optimizes the storage system. In addition, the ESP8285 can be used as a Wi-Fi adapter via the SPI/SDIO interface or I2C/UART port for any microcontroller-based design.
Small Size
Serial port to WiFi
Wireless transparent transmission
Ultra-low power consumption over long distances
An external antenna can be used
High temperature resistance up to 125 ° C
Fully compatible with ESP8266, the source code can be used as it is
module size : 12.3mm × 15mm (M1 version)
ESP8285=ESP8266+1M Flash.
Compared to ESP8266, it can withstand temperatures up to 125 degrees Celsius.And the ESP8266 source program can be used as it is.
Built-in Tensilica L106 ultra-low power 32-bit microprocessor, supporting 80MHz and 160MHz at the main frequency, supporting RTOS
Built-in TCP/IP protocol stack
Built 1 channel 10 bit high precision ADC
peripheral interface HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO
Deep sleep holding current is 10uA, shutdown current is less than 5uA
Wake up, connect and pass packets within 2 ms
Standby power consumption is less than 1.0mW (DTIM3)
Built-in 1M byte SPI Flash
Support 802.11 b/g/n/e/i
Support Station, SoftAP, SoftAP+STA mode
Support Wi-Fi Direct (P2P)
Support hardware acceleration of CCMP (CBC-MAC, counter mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC
P2P discovery, P2P GO mode/GC mode and P2P power management
WPA/PA2 PSK and WPS
802.11 i security features: pre-authentication and TSN
Support 802.11n (2.4 GHz)
802.1h/RFC1042 frame encapsulation
Seamless roaming support
Support AT remote upgrade and cloud OTA upgrade
Support Smart Config function (including Android and iOS devices)
Household appliances
Home automation
Smart sockets, smart lights
Mesh network
Baby monitor
IP camera
Sensor network
Wearable electronics
Security ID tag
Wireless location awareness
Wireless positioning system beacon
Industrial wireless control
