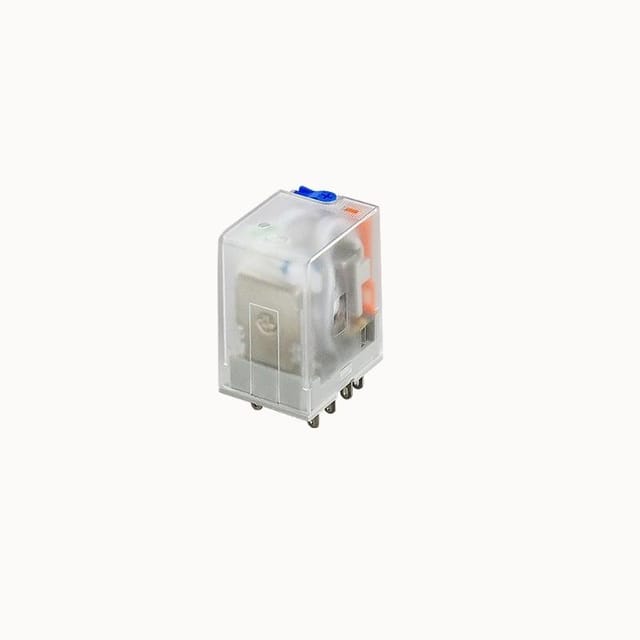

The Single Relay-DRPE-2CH-LR-D24-07A(H)-30010000139 is a compact and efficient relay designed for a variety of industrial applications. It features two convert contacts, allowing it to control two separate circuits, as well as a test button for easy testing and troubleshooting.

The relay also includes an instruction light that indicates the status of the circuit, providing a clear visual indication of whether the circuit is open or closed. With a maximum current rating of 7A and an input voltage of 24VDC, this relay is capable of handling a range of electrical loads. Overall, the Single Relay-DRPE-2CH-LR-D24-07A(H) is a reliable and versatile component for any industrial control system.

Features and Specifications:

1. Model : DRPE-2CH-LR-D24-07A(H)
2. Test Button: Yes
3. Instruct Light: Yes
4. Maximum Current Rating: 7A
5. Input Voltage: 24VDC
6. Coil Power Consumption: 0.9W
7. Contact Resistance: ≤50mΩ
8. Insulation Resistance: ≥100MΩ
9. Dielectric Strength: Between coil and contacts – 500VAC for 1 minute
10. Operate Time: ≤20ms
11. Release Time: ≤10ms
12. Mechanical Endurance: 10,000,000 cycles
13. Electrical Endurance: 100,000 cycles at rated load
14. Ambient Temperature Range: -40°C to +70°C
15. Weight: Approximately 30g

Package Includes:

1 x Degson Single relay 2C 24VDC
