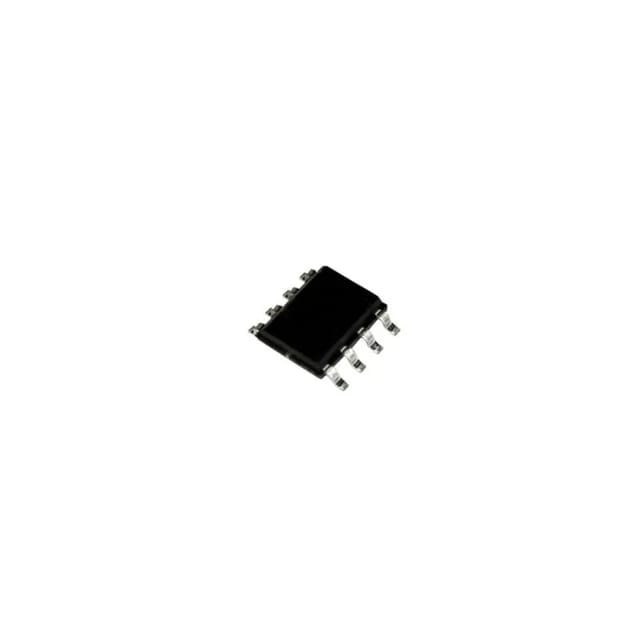

The ATTINY13A-SSU is a 8-bit apicoPower AVR RISC-based Microcontroller features 1kB of ISP Flash, 64B EEPROM, 64B SRAM, 32B register file and 4-channel 10-bit A/D converter. The device achieves up to 20 MIPS throughput at 20MHz at 1.8 to 5.5V operation. By executing powerful instructions in a single clock cycle, the ATtiny13A achieves throughputs approaching 1 MIPS per MHz allowing you to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

Specifications:

Operating Frequency Max: 20MHz
Program Memory Size: 1KB
IC Case / Package: SOIC
Device Core: AVR
MCU Series: ATtiny13
Supply Voltage Min: 1.8V
Operating Temperature Min: -40°C
MCU Family: AVR ATtiny
No. of Pins: 8Pins
ADC Resolution: 10Bit
No. of I/O’s: 6I/O’s
Product Range: AVR ATtiny Family ATtiny13 Series Microcontrollers
IC Mounting: Surface Mount
Supply Voltage Max: 5.5V
RAM Memory Size: 60Byte
ADC Channels: 4Channels
Interfaces: SPI
Operating Temperature Max: 85°C

Package Includes:

1 x ATTINY13A-SSU-MICROCHIP-8 Bit MCU, Low Power High Performance, AVR ATtiny Family ATtiny13 Series Microcontrollers, AVR
