Whether you are a beginner or already have experience with Arduino under your belt, This Advanced kit for Arduino by ROBU.IN will be a fun way to expand your knowledge.

Building some creative and simple projects is a great way to walk through coding and basic electronic circuits knowledge.

This kit includes everything you need to get started with electronics using an Arduino and a lot of things that will take you from a beginner to an enthusiast. It includes all of the basics: an UNO board, breadboard, cables, LEDs, resistors, and pushbutton switches.

Great for robot prototyping: Includes Servo motor, Ultrasonic sensor, Relay, LCD module and etc. Useful component kits: RFID kit, water sensor for an auto-planting project.

Features :

1. All-in-one kit, a great starter kit for learning to code.
2. Great for Starting with Arduino Programming
3. Variety of components are included in this pack to try out different projects.
4. The kit comes with quality components assured by Robu.in.
5. UNO Specs:
   1. Model Type: UNO Rev R3
   2. Microcontroller Chip: ATmega328
   3. Input Voltage(Recommended): 7-12V
   4. Input Voltage (limit): 6-20V
   5. Operating Voltage: 5
   6. Analog I/O Pins: 6
   7. Digital I/O Pins: 14 (of which 6 provide PWM output)
   8. PWM Digital I/O Pins: 6
   9. DC Current per I/O Pin: DC Current per I/O Pin: 40 mA; DC Current for 3.3V Pin: 50 mA
   10. Clock Speed: 16 MHz
   11. EEPROM: 1 KB (ATmega328)
   12. Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
   13. PWM Output Pins: 6
   14. SRAM: 2 KB (ATmega328)
   15. Power Supply Option: DC Jack or USB
   16. On Board LEDs: Yes
   17. Operating Temperature (°C): -40 to +90
   18. Dimensions in mm (LxWxH): 75 x 54 x 12
   19. Weight (gm): 26

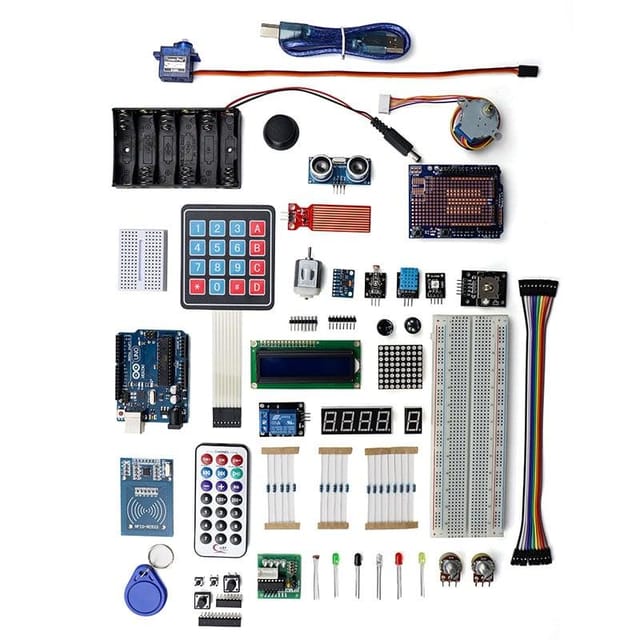

Package Includes :

Boards:

1 x Arduino UNO Development Board.

1 x MB102 830 point Solderless prototype Breadboard (White Color) with DST to stick.

1 x UNO Proto Shield Expansion Board with SYB-170 mini Breadboard.

1 x (6 x AA) battery Holder with 5mm DC male Plug for 9V DC output.

Motors and Motor Driver:

1 x Tower Pro SG-90 9g Micro Servo Motor.

1 x 5V operated 28BYJ-48 Stepper Motor.

1x 5V Stepper Motor Driver Module.

1 x FF270PA Small DC Motor.

Displays:

1 x 1602A LCD Display (Blue).

1 x 4-Digit Seven Segment Display.

1 x 1-Digit Seven Segment Display.

1 x (8 x 8 Dots) Red LED Dot Matrix Display (L x W x H: 32 x 32 x 8 mm).

Sensors:

1 x Liquid Level Sensor Module.

1 x GY-521 MPU6050 3-Axis Gyroscope and Accelerometer IMU.

1 x HC-SR-04 Ultrasonic Sensor.

1 x Active Buzzer Element.

1 x Passive Buzzer Element.

1 x ASAIR DHT11 Humidity Sensor.

1 x LDR (Light Dependent Resistor) (Photoresistor).

Integrated Circuit (ICs):

1 x MAX 7219CNG (+1816) (Datasheet) or 1 x SN74HC595 (Datasheet).

Buttons and Keypads:

10 x Big Push Buttons (12 x 12 mm).

5 x Small Push button (6 x 6 mm).

1 x Dual Axis XY (PS2) JoyStick Module.

1 x (4×4)Membrane keypad.

 LEDs (Light Emitting Diode):

1 x (4-lead) RGB Led.

10 x F5 LED- Red colour.

10 x F5 LED- Green Colour.

6 x F5 LED-While Colour.

10 x F5 LED- Yellow Colour.

Wires and Cables:

1 x 65Pcs. Bundle of Variable Size flexible Breadboard Jumper Wires (Male to Male pin).

1 x Female to male 20cm Multicolor 10 Dupont Lines Strip.

1x Universal USB to USB type D Cable (Color: Blue, Length: 50cm ) for Arduino board.

Potentiometers and Resistors:

1 x 10K Potentiometer with Adjustable Knob.

1 x 5K Potentiometer with Adjustable Knob.

5 x 1K Resistance.

5 x 10K Resistance.

8 x 220R Resistance.

Other Modules and Accessories:

1 x Tri-color SMD Module.

1 x RFID Card Reader Module.

1 x RFID tag (Key-chain).

1 x RFID White Card (Debit/Credit Card Size ).

1 x IR Remote Control.

1 x IR Receiver LED.

1 x SRD 05V DC-SL-C Relay.
