Description

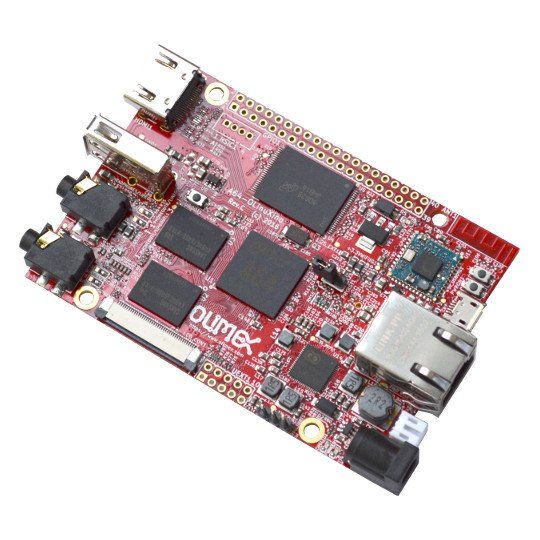

Open source hardware board that runs Linux and Android. Entirely designed with open source software CAD tools.

There are four variants:

A64-OLinuXino-1G with 1GB RAM but NO flash and NO WiFi/BLE connectivity
A64-OLinuXino-1Ge4GW with 1GB RAM and 4GB extra eMMC flash and extra WiFi/BLE module
A64-OLinuXino-1Gs16M with 1GB RAM, no flash, no WiFi/BLE, extra 16MB SPI flash
A64-OLinuXino-2Ge8G-IND with 2GB RAM and 8GB extra flash but NO WiFi/BLE connectivity; with components that work in the industrial -40+85C temperature range

Features

Allwinner A64 - 1.2 GHz Quad-Core ARM Cortex-A53 64-bit
Memory: 1GB or 2GB RAM DDR3L @ 672Mhz
0/4/16GB eMMC flash memory for storage and boot
MicroSD card connector for cards up to 32GB
Debug: serial UART debug header with 0.1" pins
Wired connectivity: 10/100/1000Mbps GbE Ethernet
Wireless connectivity: popular on-board WIFI and bluetooth 4.0 BLE module with built-in antenna (only available in the A64-OLinuXino-1G4GW version)
Monitor output: HDMI output
Display output: LCD output on 40-pin ribbon cable connector and MIPI DSI with 20-pin ribbon connector
Audio: headphone output and microphone input with phone jacks (can be changed to Line-in and Line-out via jumpers)
External power: power jack for 5V exeternal power supply
Battery power option and built-in charger circuit: the board can be fully powered via 3.7 Li-Po battery
USB connectivity: USB-OTG support on microUSB connector; USB host on USB type A connector; USB HSIC signals available on 4-pin header drills @ 0.1" step
LEDs: power indication LED, battery charging status LED, user-programmable LED
GPIO expansion: provided 40-pin header drills @ 0.1" step with useful signals (like CSI camera interface and GPIOs)
UEXT expansion: provided 10-pin header drills @ 0.1" step for UEXT expansion
optional SPI Flash on SO8 connector
RTC battery expansion: pad provided for powering the RTC of AXP803
Buttons: UBOOT button; RESET button; POWER button
Four mounting holes
PCB dimensions: (90.0 x 62.5)mm ~ (3.5 x 2.5)"
