667aa959c0666108fa7bc738 Analog Devices Inc./Maxim Integrated 505-PD42-1-1141-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/667aa95bc0666108fa7bc75b/pd42-1-1141.jpg

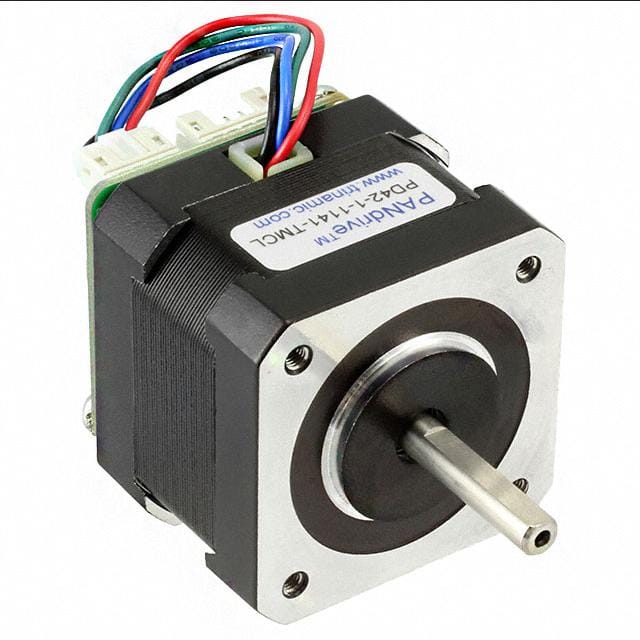

STEPPER MOTOR HYBRID BIPOLAR 24V

Product Attributes:

Series PANdrive™
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 38.2 / 270
Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing -
Termination Style Wire Leads with Connector
Operating Temperature -
Coil Resistance -
Features Integrated Controller, Flatted Shaft
Current Rating (Amps) 2 A
NEMA Frame Size 17
TT-DKEY-505-PD42-1-1141-ND
in stock INR 29374.56
Analog Devices Inc./Maxim Integrated
1 1

Analog Devices Inc./Maxim Integrated 505-PD42-1-1141-ND

Sku: TT-DKEY-505-PD42-1-1141-ND
₹29,374.56


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR HYBRID BIPOLAR 24V

Product Attributes:

Series PANdrive™
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 38.2 / 270
Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing -
Termination Style Wire Leads with Connector
Operating Temperature -
Coil Resistance -
Features Integrated Controller, Flatted Shaft
Current Rating (Amps) 2 A
NEMA Frame Size 17
