OSRAM Opto (ams OSRAM) 475-3483-2-ND,475-3483-1-ND,475-3483-6-ND
Sku: TT-DKEY-475-3483-2-ND,475-3483-1-ND,475-3483-6-ND
₹57.19
Features
- Shipping in 10-12 Working Days
Description of product

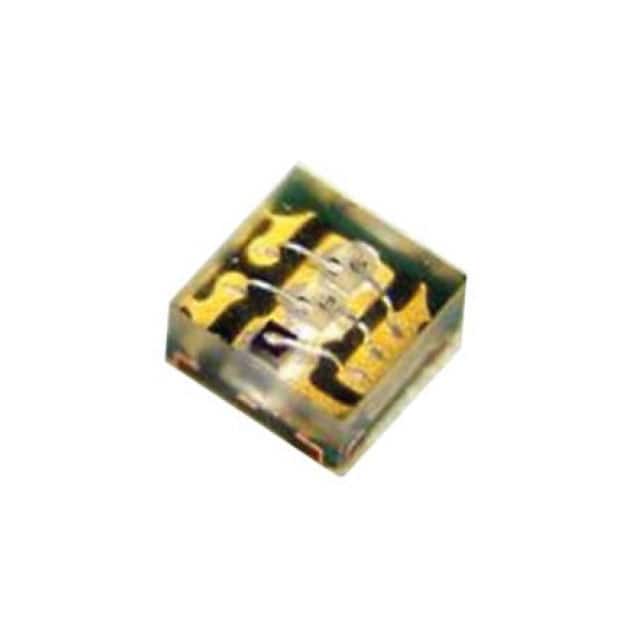

LED RGB 4SMD
Product Attributes:
| Series | Multi CHIPLED |
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | - |
| Lens Style | Square with Flat Top |
| Lens Size | 1.00mm |
| Voltage - Forward (Vf) (Typ) | 1.95V Red, 2.7V Green, 2.7V Blue |
| Current - Test | 10mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 623nm Red, 530nm Green, 471nm Blue |
| Wavelength - Peak | 632nm Red, 523nm Green, 455nm Blue |
| Features | - |
| Package / Case | 0404 (1010 Metric) |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Height (Max) | 0.75mm |
